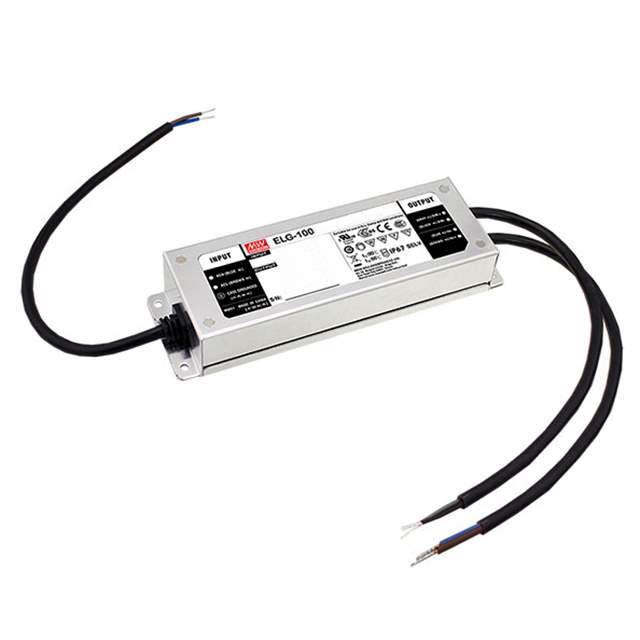

ELG-100-C500B Real Image
Same model may have multiple batches, images only for reference.

ELG-100-C500B

Part No ELG-100-C500B
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC AC/DC 100-200V 500MA / 500mA 100 ~ 200V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
ELG-100-C500B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series ELG-100-C (100W)
Package Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 100VAC
Voltage - Input (Max) 305VAC
Voltage - Output 100 ~ 200V
Current - Output (Max) 500mA
Power (Watts) 100 W
Voltage - Isolation 3.75 kV
Dimming Analog, PWM
Features OTP, OVP, SCP
Ratings IP67
Temperature Range - Operating -40°C ~ 90°C
Efficiency 91%
Termination Style Wire Leads
Dimension 6.89" L x 2.48" W x 1.40" H (175.0mm x 63.0mm x 35.5mm)
Approval Agency CB, CCC, CE, cURus, ENEC
Mounting Type Chassis Mount
Base Product Number ELG-100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names 1866-1471,ELG-100-C500B-ND
Standard Package 16
Win Source Part Number 1069523-ELG-100-C500B
Ultra Librarian 3D Model Ultra Librarian ELG-100-C500B CAD Model

Description

The MEAN WELL USA Inc. ELG-100-C500B is a 100W constant current LED driver.

  • Win Source Part Number: 1069523
  • Series: ELG-100-C (100W)
  • Voltage Output: 100 ~ 200V
  • Current Output: 500mA
  • Features: OTP, OVP, and SCP
  • Package: box
  • IP Rating: IP67
  • Operating Temperature: -40°C ~ 90°C
  • Dimensions: 6.89" L x 2.48" W x 1.40" H (175.0mm x 63.0mm x 35.5mm)
  • Efficiency: 91%
  • Mounting: chassis mountable
  • Alternative Parts: ELG-100-C500BELG100C500B
  • Approval Agencies: CB, CCC, CE, cURus, and ENEC
