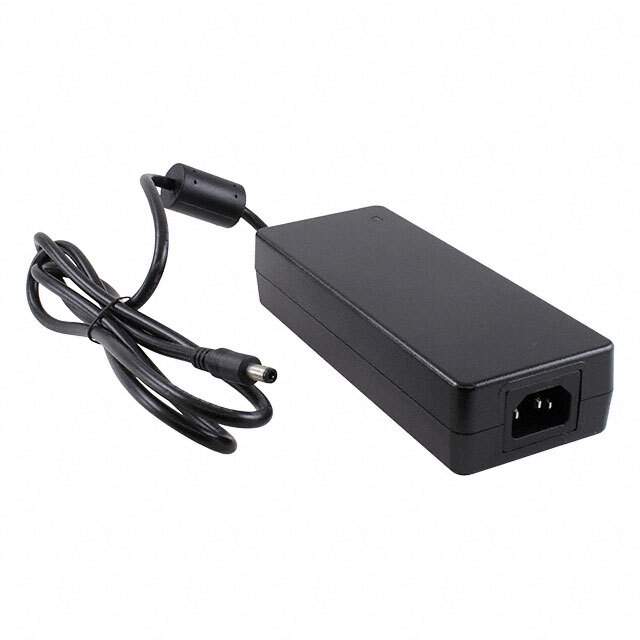

The GST120A24-P1M from MEAN WELL USA Inc. is a high-quality external/internal power supply that is a part of the GST120A (120W) series.

• Series: GST120A (120W)
• Package: Box
• Application: ITE (Commercial)
• Standard Package: 20
• Power Output: 120 W
• Voltage Output: 24V
• Voltage Input: 85 ~ 264 VAC
• Input Type: Cord (Sold Separately)
• Polarization: Positive Center
• Current Output (Max): 5A
• Efficiency: Level VI
• Form: Desktop (Class I)
• No-Load Power Consumption: 150mW (Max)
• Output Connector: Barrel Plug (2.5mm I.D. x 5.5mm O.D. x 11.0mm)
• Input Connector: IEC 320-C14
• Cord Length: 47.2" (1.20m)
• Temperature Range: -30°C ~ 70°C
• Dimension: 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm)
• REACH Status: REACH Unaffected
• HTSUS Code: 8504.40.9520
• Also Known As: GST120A24P1M
• Approval Agency: BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM
