Same model may have multiple batches, images only for reference.

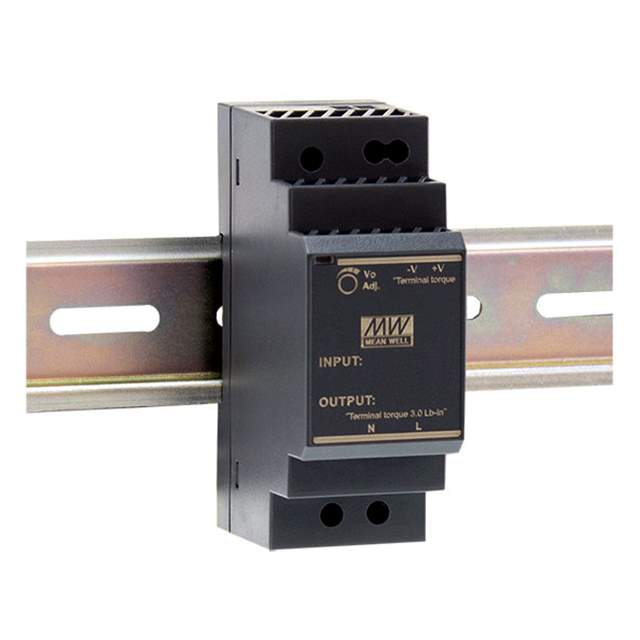

HDR-30-24 Real Image
Same model may have multiple batches, images only for reference.

HDR-30-24

Part No HDR-30-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog OEM Parts (F - I)
Description AC/DC CONVERTER 24V 36W /
Datasheet
HDR-30-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>Industrial, DIN Rail Power Supplies
Mfr MEAN WELL USA Inc.
Series HDR-30 (30W)
Package Box
Input Type AC or DC
Number of Outputs 1
AC Voltage - Input 85 ~ 264 VAC
DC Voltage - Input (Min) 120V
DC Voltage - Input (Max) 370V
Voltage - Output 1 24V
Current - Output (Max) 1.5A
Power (Watts) 36W
Voltage - Isolation 4 kV
Applications Industrial, ITE (Commercial)
Efficiency 89%
Temperature Range - Operating -30°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Dimension 2.15" L x 1.38" W x 3.54" H (54.5mm x 35.0mm x 90.0mm)
Approval Agency CB, CE, cULus, cURus, TUV
Minimum Load Required No
Base Product Number HDR-30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names 1866-2244,HDR-30-24-ND
Standard Package 96
Win Source Part Number 1055949-HDR-30-24
Ultra Librarian 3D Model Ultra Librarian HDR-30-24 CAD Model

Description

The HDR-30-24 is an industrial DIN rail power supply belonging to the HDR-30 series manufactured by MEAN WELL USA Inc.

  • Power: 36W
  • Voltage Isolation: 4 kV
  • Adjustable Output: Yes
  • Universal Input: Yes
  • Output: Single
  • Maximum Current Output: 1.5A
  • Voltage Output: 24V
  • Efficiency: 89%
  • Temperature Range: -30°C to 70°C (with derating)
  • Dimensions: 2.15" L x 1.38" W x 3.54" H (54.5mm x 35.0mm x 90.0mm)
