Same model may have multiple batches, images only for reference.

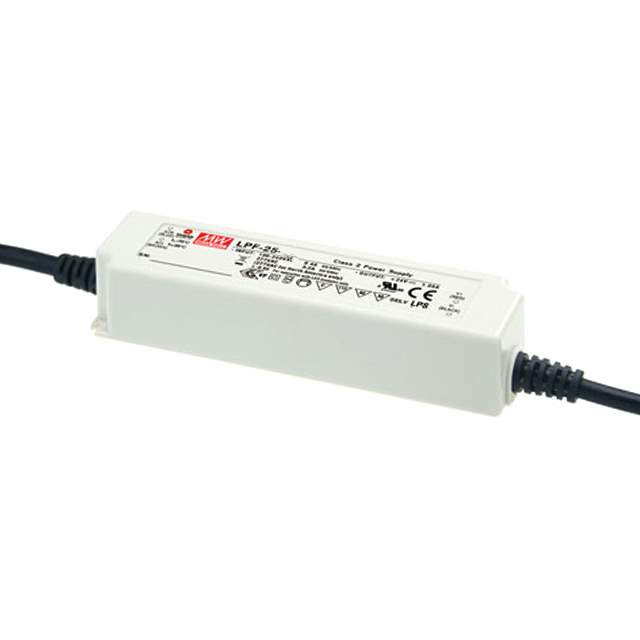

LPF-25-24 Real Image
Same model may have multiple batches, images only for reference.

LPF-25-24

Part No LPF-25-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DVR CCCV ACDC 13.2-24V 1.05A / 1.05A 13.2 ~ 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
LPF-25-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series LPF-25 (25W)
Package Box
Type Constant Current, Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 305VAC
Voltage - Output 13.2 ~ 24V
Current - Output (Max) 1.05A
Power (Watts) 25 W
Voltage - Isolation 3.75 kV
Features OCP, OTP, OVP, SCP
Ratings IP67
Temperature Range - Operating -35°C ~ 70°C
Efficiency 86%
Termination Style Wire Leads
Dimension 5.83" L x 1.57" W x 1.26" H (148.0mm x 40.0mm x 32.0mm)
Approval Agency CB, CCC, CE, cURus, ENEC, PSE
Mounting Type Chassis Mount
Base Product Number LPF-25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names 1866-3177,LPF-25-24-ND,Q12090659
Standard Package 40
Win Source Part Number 1070664-LPF-25-24
Ultra Librarian 3D Model Ultra Librarian LPF-25-24 CAD Model

Description

The LPF-25-24 is a 25W constant current and voltage type LED driver manufactured by MEAN WELL USA Inc.

  • Series: LPF-25
  • IP Rating: IP67
  • Termination Style: wire lead
  • Features: OCP, OTP, OVP, and SCP
  • Package: 40 units
  • Mounting: chassis mounting
  • Voltage Input Range: 90VAC to 305VAC
  • Efficiency: 86%
  • RoHS Compliant: yes
  • ECCN: EAR99
