Same model may have multiple batches, images only for reference.

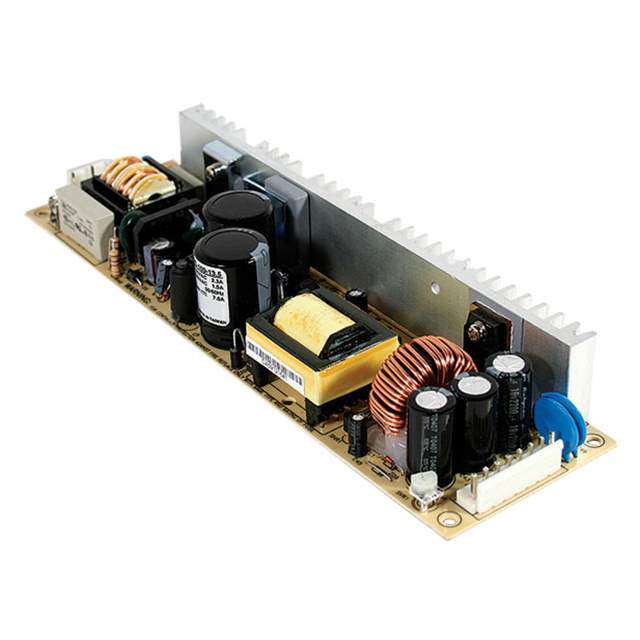

LPS-100-13.5 Real Image
Same model may have multiple batches, images only for reference.

LPS-100-13.5

Part No LPS-100-13.5
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 13.5V 101W / Open Frame AC DC Converters 1 Output 13.5V 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 370 VDC Input
Datasheet
LPS-100-13.5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr MEAN WELL USA Inc.
Series LPS-100 (100W)
Package Box
Type Open Frame
Number of Outputs 1
Voltage - Input 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 370 VDC
Voltage - Output 1 13.5V
Current - Output 1 7.5 A
Power (Watts) 101W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 79%
Temperature Range - Operating -10°C ~ 60°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Dimension 8.74" L x 2.44" W x 1.26" H (222.0mm x 62.0mm x 32.0mm)
Approval Agency CB, CE, cURus, TUV
Minimum Load Required No
Base Product Number LPS-100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6018
Other Names 1866-3268,LPS-100-13.5-ND
Standard Package 24
Win Source Part Number 1168453-LPS-100-13.5
Ultra Librarian 3D Model Ultra Librarian LPS-100-13.5 CAD Model

Description

The MEAN WELL USA Inc. LPS-100-13.5 is an open frame AC-DC converter that has an adjustable output and a universal input.

  • Power Output: 101W
  • Voltage Input Range: 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 370 VDC
  • Voltage Isolation: 3 kV
  • Number of Outputs: 1
  • Output Voltage: 13.5V
  • Output Current: 7.5 A
  • Efficiency: 79%
  • RoHS: Compliant
  • REACH: Unaffected
  • Application: ITE (commercial)
  • MSL Level: 1 (unlimited)
