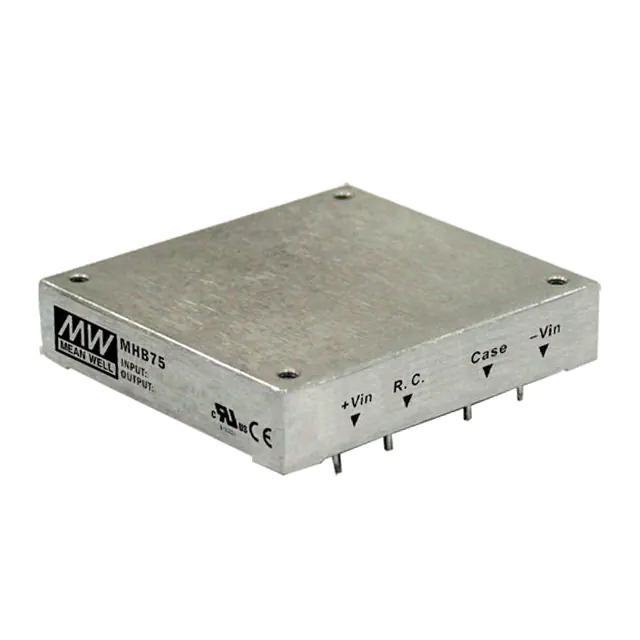

MHB75-24S12 Mean Well Enterprises Co., Ltd.
Same model may have multiple batches, images only for reference.

MHB75-24S12

Part No MHB75-24S12
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 75W / Isolated Module DC DC Converter 1 Output 12V 6.25A 18V - 36V Input
Datasheet
MHB75-24S12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MEAN WELL USA Inc.
Series MHB75 (75W)
Package Tray
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 6.25A
Power (Watts) 75 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 100°C (With Derating)
Efficiency 88%
Mounting Type Through Hole
Package / Case Half Brick
Size / Dimension 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package Half Brick
Base Product Number MHB75
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1356035-MHB75-24S12
Ultra Librarian 3D Model Ultra Librarian MHB75-24S12 CAD Model

Description

The MEAN WELL USA Inc. MHB75 (75W) is an isolated module DC-DC converter from MEAN WELL USA Inc.

  • Power Supplies: Board Mount
  • Temperature Range: -40°C to 100°C (with derating)
  • Package: Half Brick
  • Size Dimension: 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
  • Maximum Output Current: 6.25A
  • Power: 75W
  • Output Voltage: 12V
  • Efficiency: 88%
  • Features: Remote On/Off, OCP, OTP, OVP, SCP, and UVLO
  • Application: ITE (Commercial)
