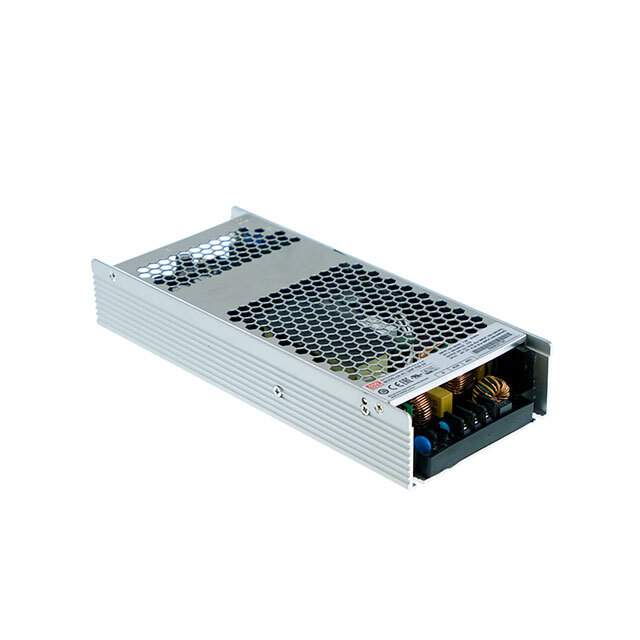

UHP-750-36 Real Image
Same model may have multiple batches, images only for reference.

UHP-750-36

Part No UHP-750-36
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 36V 752W / Enclosed AC DC Converters 1 Output 36V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Datasheet
UHP-750-36 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr MEAN WELL USA Inc.
Series UHP-750 (750W)
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 36V
Current - Output 1 20.9 A
Power (Watts) 752W
Applications Household Appliances, ITE (Commercial)
Voltage - Isolation 3.75 kV
Efficiency 95%
Temperature Range - Operating -30°C ~ 70°C (With Derating)
Features Adjustable Output, PFC, Universal Input
Mounting Type Chassis Mount
Size / Dimension 9.33" L x 3.94" W x 1.61" H (237.0mm x 100.0mm x 41.0mm)
Approval Agency CB, CE, cURus, EAC, TUV
Base Product Number UHP-750
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9540
Win Source Part Number 1345655-UHP-750-36
Ultra Librarian 3D Model Ultra Librarian UHP-750-36 CAD Model

Description

This is a 750W enclosed AC DC converter from MEAN WELL USA Inc. with an adjustable output, PFC, and universal input features.

  • Size/Dimension: 9.33 inches (L) x 3.94 inches (W) x 1.61 inches (H) or 237.0mm x 100.0mm x 41.0mm
  • Voltage Input: 90-264VAC or 127-370VDC
  • Voltage Isolation: 3.75kV
  • Voltage Output: 36V
  • Current Output: 20.9A
  • Efficiency: 95%
  • Mounting Type: Chassis mount
  • Temperature Range: -30°C to 70°C with derating
