Same model may have multiple batches, images only for reference.

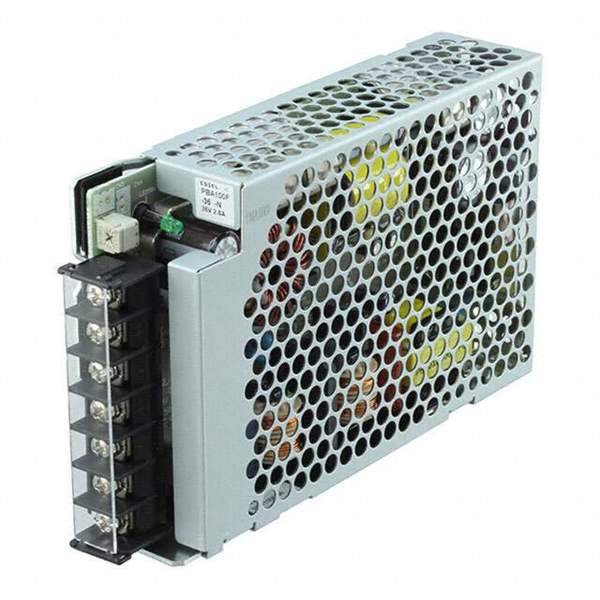

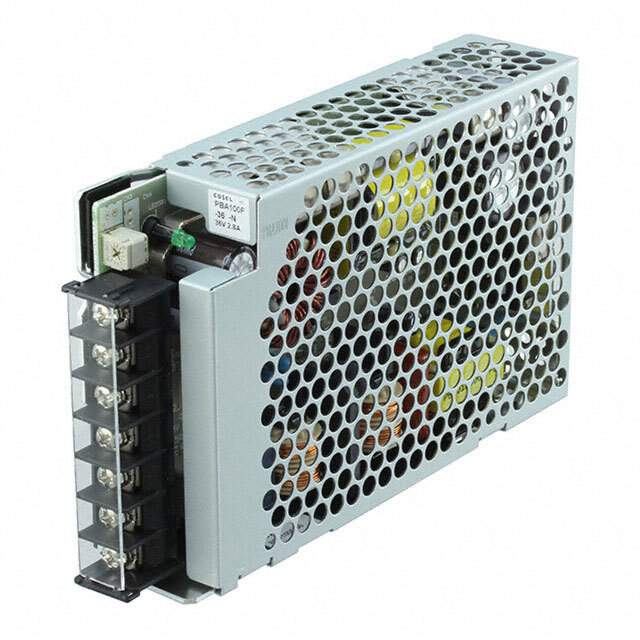

PBA100F-24-N Real Image
Same model may have multiple batches, images only for reference.

PBA100F-24-N

Part No PBA100F-24-N
Manufacturer Cosel USA, Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 100W / Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Cosel USA, Inc.
Series PBA (100W)
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 24V
Current - Output 1 4.5 A
Power (Watts) 100W
Applications ITE (Commercial)
Efficiency 86%
Features DC Input Capable, Universal Input
Mounting Type Chassis Mount
Approval Agency CE, cURus, TUV
Minimum Load Required No
Base Product Number PBA100
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9520
California Prop 65 Warning Information
Win Source Part Number 1341365-PBA100F-24-N
Ultra Librarian 3D Model Ultra Librarian PBA100F-24-N CAD Model

Description

The Cosel PBA100F-24-N is an enclosed AC-DC converter that is designed for ITE (commercial) applications.

  • Voltage Input: 85-264 VAC
  • Output Voltage: 24V
  • Output Current: 4.5A
  • Efficiency: 86%
  • Mounting: Chassis mount
  • Temperature Range: -10°C to 70°C
  • Approvals: CE, cURus, and TUV
