HWS50-3/A

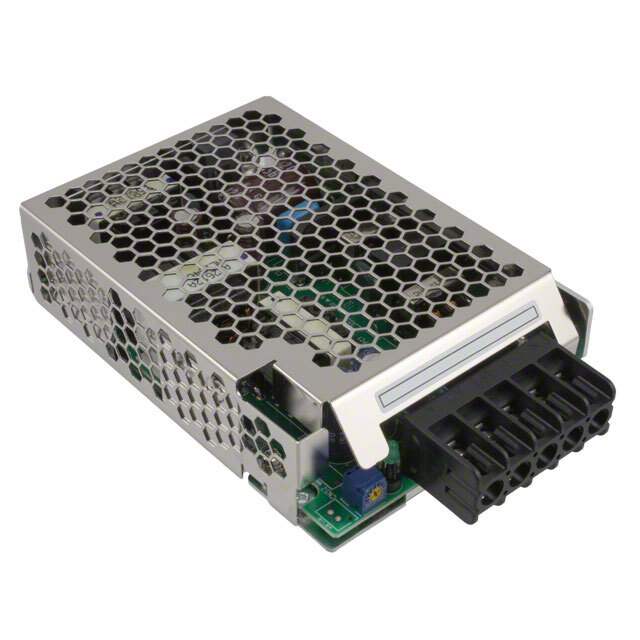

Part No HWS50-3/A
Manufacturer TDK-Lambda Americas Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 3.3V 50W
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)
Family AC DC Converters
Manufacturer TDK-Lambda Americas Inc.
Series HWS
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 265 VAC
Voltage - Output 1 3.3V
Current - Output (Max) 10A
Power (Watts) 50W
Applications ITE (Commercial)
Voltage - Isolation 3kV (3000V)
Efficiency 78%
Operating Temperature Range -10°C ~ 70°C (With Derating)
Features Adjustable Output, DC Input Capable, Universal Input
Mounting Style Chassis Mount
Size / Dimension 4.72" L x 1.24" W x 3.23" H (119.9mm x 31.5mm x 82.0mm)
Approvals CE
Power (Watts) - Max 33W
Win Source Part Number 118446-HWS50-3/A
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Industrial, Test & Measurement, Communications & Networking
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian HWS50-3/A CAD Model

Description

The TDK-Lambda Americas Inc. HWS series AC DC converter is a high-quality power supply that is perfect for use in ITE (Commercial) applications. It features an adjustable output, DC input capability, and universal input, making it a versatile and reliable option. With a power output of 50W and an efficiency of 78%, this power supply is both powerful and energy-efficient. The HWS series AC DC converter has a chassis mount style and measures 4.72" L x 1.24" W x 3.23" H (119.9mm x 31.5mm x 82.0mm). It has a voltage input range of 85 ~ 265 VAC and an isolation voltage of 3kV (3000V). The converter has one output with a maximum current output of 10A and a voltage output of 3.3V. It has CE approval and can operate in temperatures ranging from -10°C to 70°C (with derating).
