Same model may have multiple batches, images only for reference.

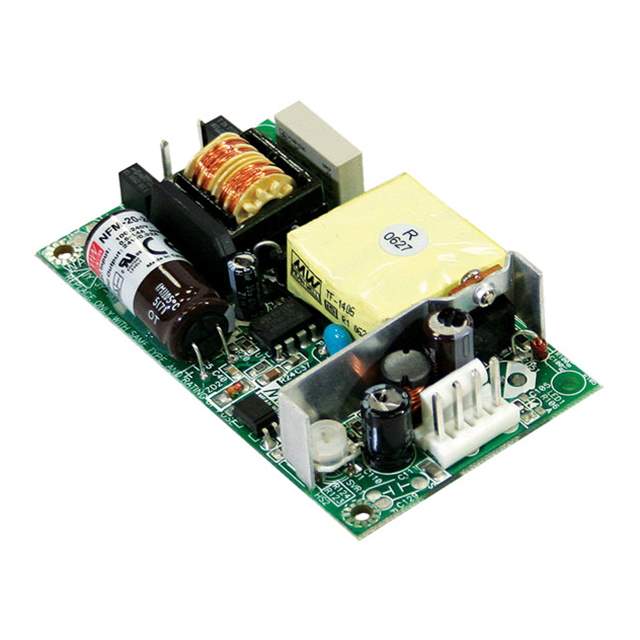

NFM-20-12 Real Image
Same model may have multiple batches, images only for reference.

NFM-20-12

Part No NFM-20-12
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 12V 22W / Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet
NFM-20-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr MEAN WELL USA Inc.
Series NFM-20 (20W)
Package Tray
Product Status Obsolete
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 12V
Current - Output 1 1.8 A
Power (Watts) 22W
Applications Medical
Voltage - Isolation 4 kV
Efficiency 81%
Temperature Range - Operating -20°C ~ 60°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Dimension 3.50" L x 2.01" W x 0.76" H (89.0mm x 51.0mm x 19.3mm)
Approval Agency CB, CE, cURus, TUV
Minimum Load Required No
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names 1866-3545,NFM-20-12-ND
Standard Package 1
Win Source Part Number 1082045-NFM-20-12
Ultra Librarian 3D Model Ultra Librarian NFM-20-12 CAD Model

Description

The MEAN WELL NFM-20-12 is a 20W AC DC converter that is designed for medical applications.

  • Type: AC DC Converter
  • Power: 20W
  • Application: Medical applications
  • Input: Universal input
  • Output: Adjustable output
  • Voltage Input: 85 ~ 264 VAC and 120 ~ 370 VDC
  • Voltage Isolation: 4 kV
  • Efficiency: 81%
  • Current Output: 1.8 A
  • Package: Tray
  • Dimension: 3.50" L x 2.01" W x 0.76" H
  • Supply and Demand Status: Shortage
  • Status: Obsolete
