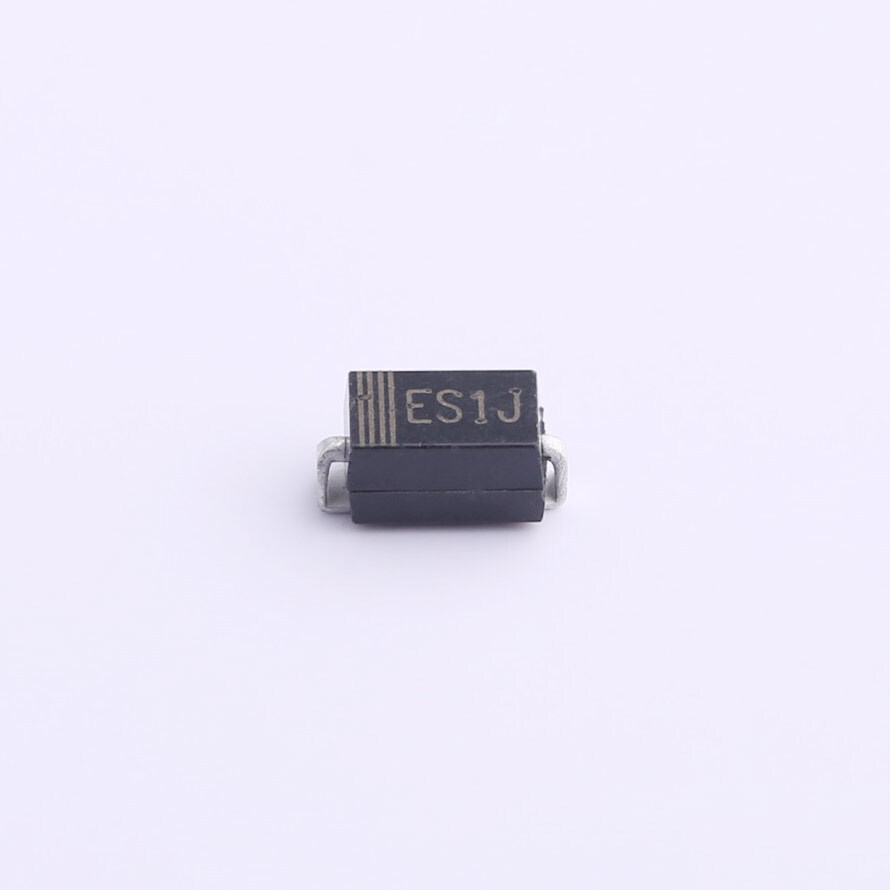

Part No ES1J
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog Diodes, Rectifiers - Single
Description 1.7V@1A 35ns 1A 600V SMA(DO-214AC)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329965-ES1J
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.7V @ 1A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35ns
Current - Reverse Leakage @ Vr 5µA @ 600V
Capacitance @ Vr, F 8pF @ 4V, 1MHz
Grade -
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -55°C ~ 150°C
Capacitance @ Vr, F 18pF @ 1V, 1MHz
Package Bag
Operating Temperature - Junction -50°C ~ 150°C
Capacitance @ Vr, F 8pF @ 0V, 1MHz
Operating Temperature - Junction 150°C (Max)
Package Tape & Box (TB)
Capacitance @ Vr, F 25pF @ 4V, 1MHz
Grade Automotive
Qualification AEC-Q101
Supplier Device Package SMA
Package Tape & Reel (TR)
Capacitance @ Vr, F 15pF @ 4V, 1MHz
Ultra Librarian 3D Model Ultra Librarian ES1J CAD Model

Description

ES1J from ShenZhen SlkorMicro Semicon Co. Ltd is a single rectifier diode used in general-purpose power conversion and protection circuits. In practical designs, parts in this category are commonly selected for rectification, freewheeling, reverse-polarity protection, and power supply support across consumer electronics, industrial control boards, adapters, chargers, LED drivers, and embedded hardware. For engineers, ES1J is positioned as a functional building block where dependable diode behavior and sourcing continuity matter more than feature complexity. Because the exact lifecycle status is listed as unknown, design teams should treat long-term availability as unconfirmed and verify current production status directly with the manufacturer or authorized channel before locking it into new programs. RoHS compliance information is also not available from the provided data, so environmental compliance should be confirmed through the latest datasheet, declaration, or manufacturer statement. ES1J may be suitable for cost-sensitive and maintenance-driven designs where a standard single rectifier footprint is required.
