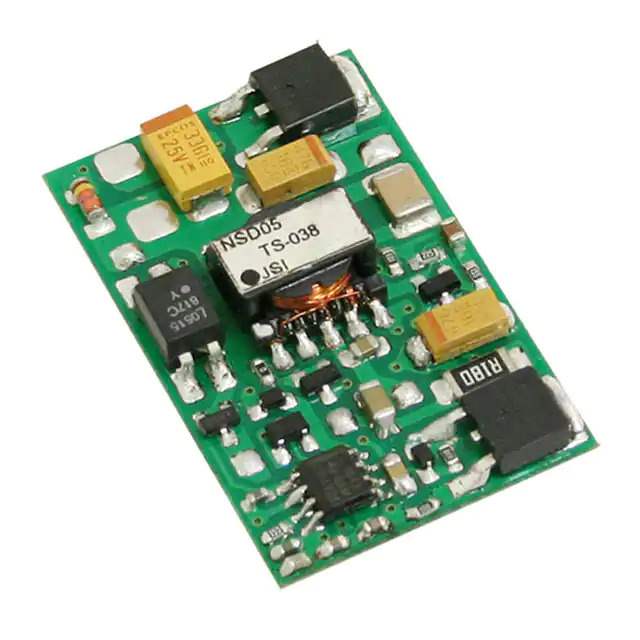

NSD05-12S12

Name: NSD05-12S12
Brand: Mean Well Enterprises Co., Ltd.
SKU: 649555
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NSD05-12S12
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 5W
Datasheet	NSD05-12S12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Mean Well Enterprises Co., Ltd.
Series	NSD05-S (5W)
Package	Tray
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9.2V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Current - Output (Max)	420mA
Power (Watts)	5 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-25°C ~ 70°C (With Derating)
Efficiency	82%
Mounting Type	Through Hole
Package / Case	5-DIP Module
Size / Dimension	1.60" L x 1.00" W x 0.33" H (40.6mm x 25.4mm x 8.3mm)
Base Product Number	NSD05
Standard Package	700 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	649555-NSD05-12S12
Ultra Librarian 3D Model	Ultra Librarian NSD05-12S12 CAD Model

Alternative Products

Description

The NSD05-12S12 is a 5W isolated DC-DC converter from the NSD05-S series.

Function: Remote On/Off
Protection Features: OCP, OVP, and SCP
Voltage Input: 9.2V to 36V
Voltage Output: 12V
Application: ITE (Commercial)
Maximum Output Current: 420mA
Efficiency: 82%
Dimensions: 1.60" L x 1.00" W x 0.33" H
Mounting Type: Through-Hole
Operating Temperature: -25°C to 70°C (with derating)
Certifications: CB, CE, cURus, and TUV
