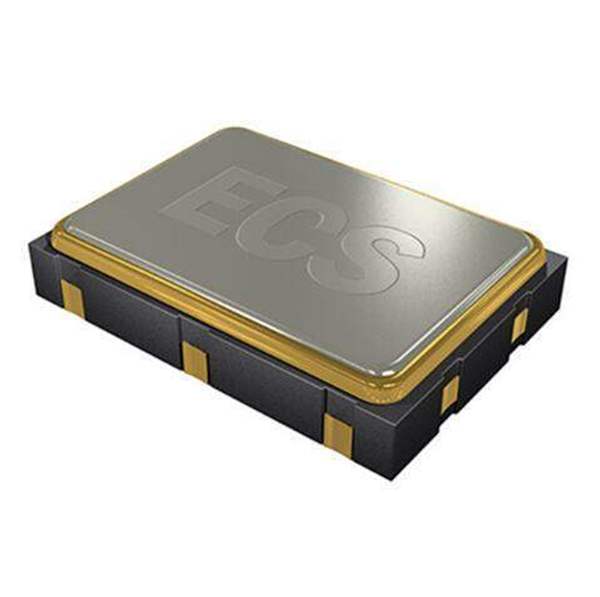

ECS-2520S25-250-FN-TRECS Inc.
Same model may have multiple batches, images only for reference.

ECS-2520S25-250-FN-TR

Part No ECS-2520S25-250-FN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 25.0000MHZ HCMOS SMD
Datasheet
ECS-2520S25-250-FN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators Oscillators
Part Status Active
Frequency 25 MHz
Function Enable/Disable
Output HCMOS
Frequency Stability ±10ppm
Voltage - Supply 2.5V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Win Source Part Number WS1304825-ECS-2520S25-250-FN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-2520S25-250-FN-TR CAD Model

Description

The miniature ECS-2520S is a miniature SMD HCMOS Tight Stability Crystal Oscillator. The 2.5 x 2.0 x 0.9 mm ceramic package is ideal for wireless and IOT application where stability is critical.
