Same model may have multiple batches, images only for reference.

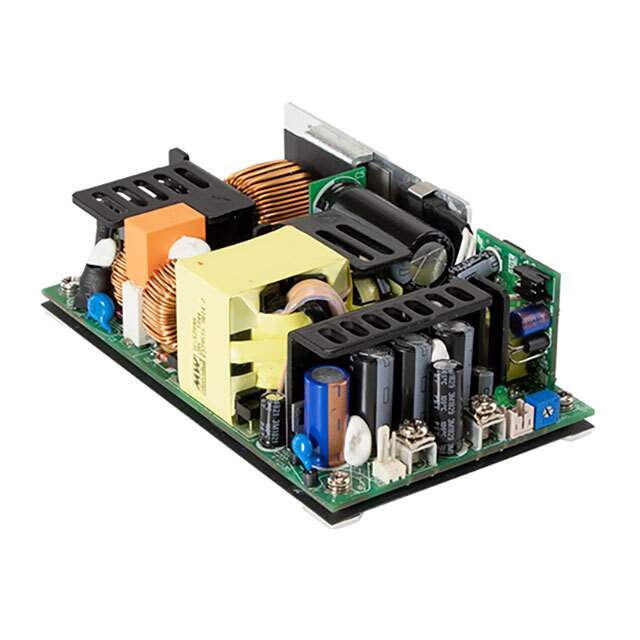

RPS-500-27 Real Image
Same model may have multiple batches, images only for reference.

RPS-500-27

Part No RPS-500-27
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 27V 321W / Open Frame AC DC Converters 1 Output 27V 80 ~ 264 VAC, 113 ~ 370 VDC Input
Datasheet
RPS-500-27 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr MEAN WELL USA Inc.
Series RPS-500 (500W)
Package Box
Type Open Frame
Number of Outputs 1
Voltage - Input 80 ~ 264 VAC, 113 ~ 370 VDC
Voltage - Output 1 27V
Current - Output 1 11.9 A
Power (Watts) 321W (500W Forced Air)
Applications Medical
Voltage - Isolation 4 kV
Efficiency 93.5%
Temperature Range - Operating -30°C ~ 70°C (With Derating)
Features Adjustable Output, PFC, Remote Sense, Universal Input
Mounting Type Chassis Mount
Dimension 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm)
Approval Agency CB, CE, cURus, EAC, TUV
Base Product Number RPS-500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9530
Other Names 1866-5614
Standard Package 30
Win Source Part Number 1088886-RPS-500-27
Ultra Librarian 3D Model Ultra Librarian RPS-500-27 CAD Model

Description

The RPS-500 (500W) AC-DC converter is an open frame type power supply that features adjustable output, PFC, remote sense, and universal input. It has a voltage input range of 80-264 VAC and 113-370 VDC, with a voltage output of 27V and a maximum output current of 11.9A.

  • Minimum Load Required: Not applicable
  • Efficiency: 93.5%
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -30°C to 70°C (with derating)
  • Dimension: 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm)
  • Application: Ideal for medical applications
