Same model may have multiple batches, images only for reference.

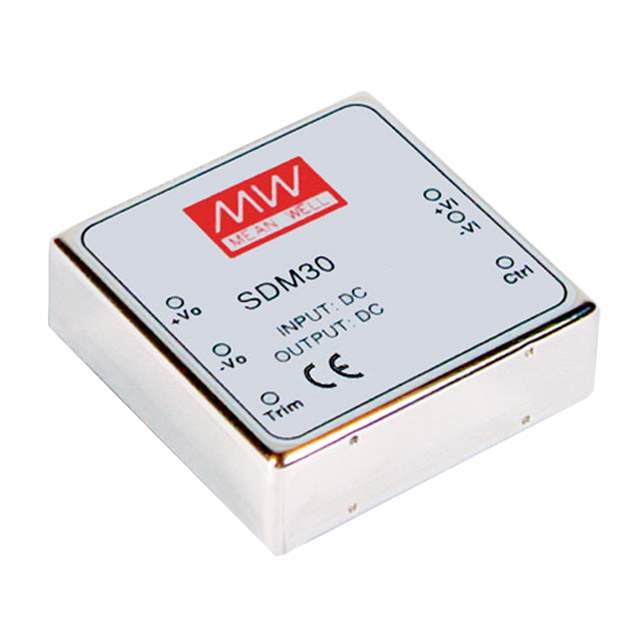

SDM30-48S15 Real Image
Same model may have multiple batches, images only for reference.

SDM30-48S15

Part No SDM30-48S15
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 30W  /  Isolated Module DC DC Converter 1 Output 15V 2A 36V - 72V Input
Datasheet
SDM30-48S15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr MEAN WELL USA Inc.
Series SDM30 (30W)
Package Box
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 72V
Voltage - Output 1 15V
Current - Output (Max) 2A
Power (Watts) 30 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -25°C ~ 85°C (With Derating)
Efficiency 85%
Mounting Type Through Hole
Package / Case 8-DIP Module
Dimension 2.00" L x 2.00" W x 0.63" H (50.8mm x 50.8mm x 16.0mm)
Base Product Number SDM30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1866-4454,SDM30-48S15-ND
Standard Package 150
Win Source Part Number 1230215-SDM30-48S15
Ultra Librarian 3D Model Ultra Librarian SDM30-48S15 CAD Model

Description

The SDM30-48S15 is a 30W isolated module DC-DC converter with a remote on/off feature, overcurrent protection (OCP), overvoltage protection (OVP), and short circuit protection (SCP). It is suitable for commercial applications such as ITE.

  • Product Name: SDM30-48S15
  • Manufacturer: MEAN WELL USA Inc.
  • Power: 30W
  • Feature: Isolated module DC-DC converter
  • Protection: OCP, OVP, SCP
  • Application: ITE
  • Output Type: Single
  • Maximum Output Current: 2A
  • Output Voltage: 15V
  • Input Voltage Range: 36V to 72V
  • Efficiency: 85%
  • Mounting Type: Through Hole
  • Package/Case: 8-DIP module
  • Dimension: 2.00" L x 2.00" W x 0.63" H (50.8mm x 50.8mm x 16.0mm)
  • Operating Temperature: -25°C to 85°C (with derating)
