H1201DG

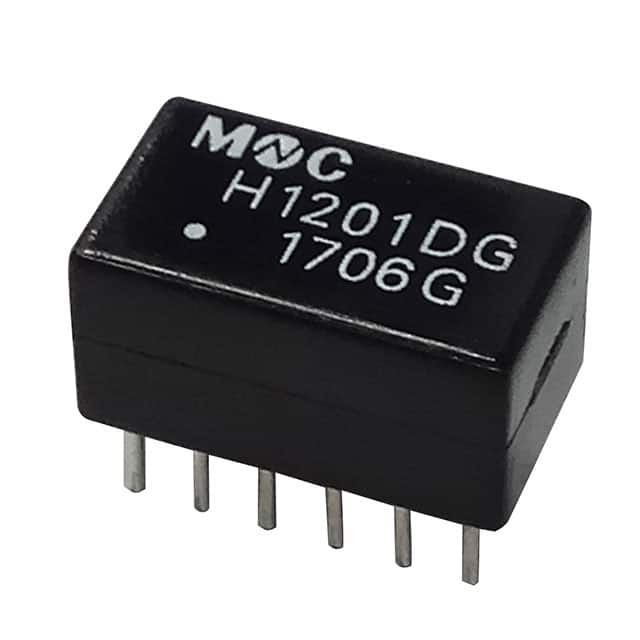

Same model may have multiple batches, images only for reference.

H1201DG

Part No H1201DG
Manufacturer Mentech Technology USA Inc.
Catalog Pulse Transformers
Description SINGLE LAN XFMR 10/100 BASE-T
Datasheet
H1201DG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Mentech Technology USA Inc.
Package Tube
Product Status Active
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting Type Through Hole
Size / Dimension 0.504" L x 0.295" W (12.80mm x 7.50mm)
Height - Seated (Max) 0.276" (7.00mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 5 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.9000
Win Source Part Number 919942-H1201DG
Ultra Librarian 3D Model Ultra Librarian H1201DG CAD Model

Description

The 919942-H1201DG is a pulse transformer designed for LAN 10/100 Base-T applications.

  • Application: LAN 10/100 Base-T
  • Size: 0.504" L x 0.295" W (12.80mm x 7.50mm)
  • Height: 0.276" (7.00mm)
  • Mounting: through-hole
  • Inductance: 350µH
  • Operating Temperature: 0°C to 70°C
  • Package: tube
  • Package Quantity: 5 pcs
  • Manufacturer: Mentech Technology USA Inc.
  • Product Status: active
