SMCJ78C

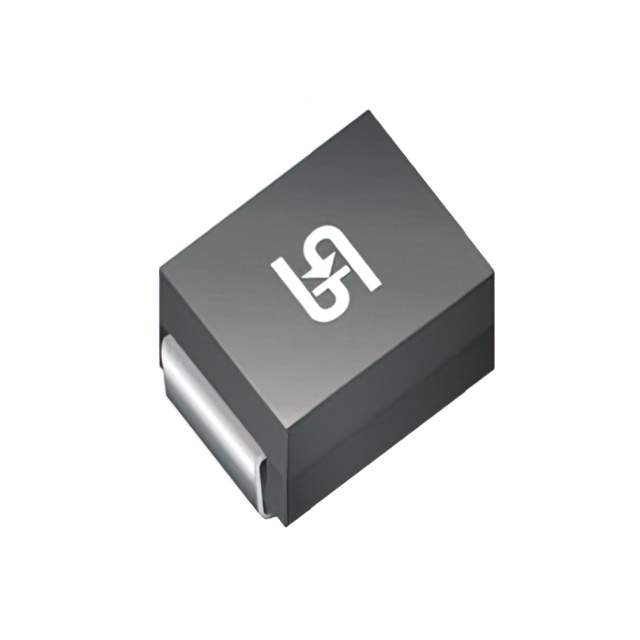

Part No SMCJ78C
Manufacturer Meritek
Catalog TVS - Diodes
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMCJ
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 78V
Voltage - Breakdown (Min) 86.7V
Voltage - Clamping (Max) @ Ipp 139V
Current - Peak Pulse (10/1000µs) 10.79A
Power - Peak Pulse 1500W (1.5kW)
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AB (SMC)
Other Names 2997-SMCJ78CTR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299923-SMCJ78C
Ultra Librarian 3D Model Ultra Librarian SMCJ78C CAD Model

Description

The SMCJ78C is a TVS diode designed to protect electronic circuits from voltage surges and spikes.

  • Breakdown Voltage: 86.7V
  • Clamping Voltage: 139V
  • Peak Pulse Power: 1.5kW
  • Peak Pulse Current: 10.79A
  • Channel Type: Bidirectional
  • Application: General-purpose
