Products specifications Report Issue?

RoHS State Request Verification
Manufacturer Micrel
Win Source Part Number 1223461-MICRF506BML
Manufacturer Homepage www.micrel.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MICRF506BML CAD Model

Description

The MICRF506BML is a QwikRadio receiver IC manufactured by Micrel (Microchip Technology). It is designed for low-power, single-chip ASK/OOK (Amplitude Shift Keying/On-Off Keying) receiver applications in the 300MHz to 450MHz frequency range. This receiver is ideal for remote control, wireless security, and low-data-rate communication systems.

Applications

  • Remote keyless entry (RKE) systems
  • Tire Pressure Monitoring Systems (TPMS)
  • Remote control toys
  • Garage door openers
  • Wireless security systems (e.g., alarm sensors)
  • Low-power wireless data links

Features

  • Single-chip ASK/OOK receiver
  • Frequency range: 300MHz to 450MHz
  • Low power consumption
  • High sensitivity
  • Automatic Gain Control (AGC)
  • Wake-up timer
  • Data slicer with adaptive threshold
  • Few external components required
  • Small package size

Benefits

  • Long battery life: Low power consumption extends battery life in portable devices.
  • Reliable wireless communication: High sensitivity ensures reliable reception even with weak signals.
  • Simplified design: Few external components reduce board space and design complexity.
  • Immunity to interference: AGC and data slicer improve performance in noisy environments.
  • Cost-effective: Single-chip solution reduces overall system cost.
  • Fast wake-up time: Quick response to incoming signals.

Additional Details

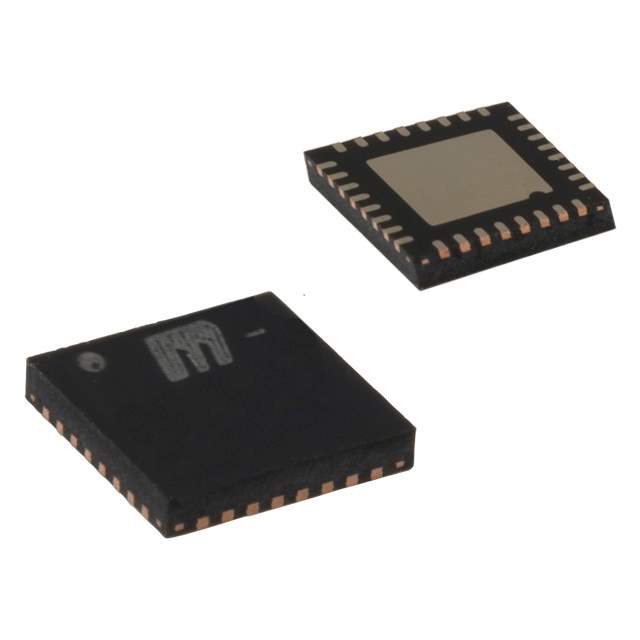

The MICRF506BML operates from a single supply voltage typically in the range of 3.0V to 5.5V. It includes an on-chip oscillator, LNA (Low Noise Amplifier), mixer, IF filter, and data slicer. The AGC circuit automatically adjusts the receiver gain to optimize performance under varying signal conditions. The wake-up timer allows the receiver to periodically wake up and check for incoming signals, further reducing power consumption. The data slicer extracts the data from the received signal by comparing it to an adaptive threshold. The MICRF506BML is available in a small ML (Micro Leadframe) package, making it suitable for space-constrained applications. External components typically include a crystal or SAW resonator for the oscillator, decoupling capacitors, and a few passive components for impedance matching.

Careful PCB layout is crucial for optimal performance, especially in high-frequency applications. The antenna should be properly matched to the receiver input impedance to maximize signal strength. Detailed application notes and reference designs are available from Microchip Technology to assist with the design and implementation of MICRF506BML-based systems.
