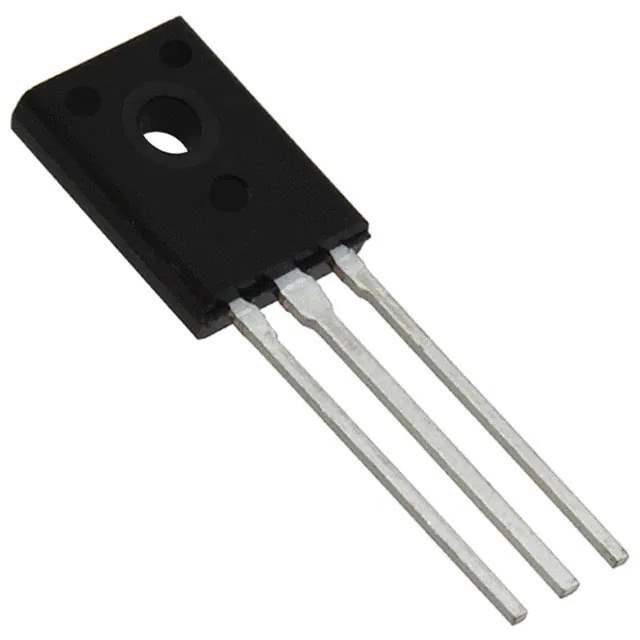

2SD1691-Y-BP Real Image
Same model may have multiple batches, images only for reference.

2SD1691-Y-BP

Part No 2SD1691-Y-BP
Manufacturer Micro Commercial Co
Catalog Transistors (BJT) - Single
Description TRANS NPN 60V 5A TO126
Datasheet
2SD1691-Y-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Micro Commercial Co
Package Bulk
Product Status Obsolete
Transistor Type NPN
Current - Collector (Ic) (Max) 5 A
Voltage - Collector Emitter Breakdown (Max) 60 V
Vce Saturation (Max) @ Ib, Ic 300mV @ 200mA, 2A
Current - Collector Cutoff (Max) 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 160 @ 2A, 1V
Power - Max 1.3 W
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-225AA, TO-126-3
Supplier Device Package TO-126
Base Product Number 2SD1691
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 855282-2SD1691-Y-BP
Ultra Librarian 3D Model Ultra Librarian 2SD1691-Y-BP CAD Model

Description

The 855282-2SD1691-Y-BP is an NPN bipolar transistor designed for various electronic applications manufactured by Micro Commercial Co.

  • Maximum Power Dissipation: 1.3W
  • Collector-Emitter Breakdown Voltage: 60V
  • Maximum Collector Current: 5A
  • Vce Saturation: 300mV @ 200mA and 2A
  • Collector Cutoff Current: 10μA
  • Mounting Type: Through-Hole
  • Package: TO-225AA, TO-126-3
  • Operating Temperature Range: -55°C to 150°C
  • Series: 2SD1691
  • Product Status: Obsolete
