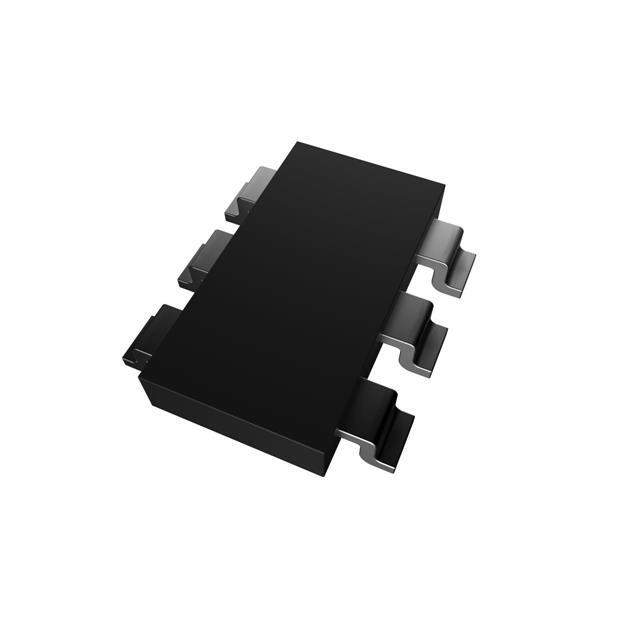

BAS70DW-06-TP Real Image
Same model may have multiple batches, images only for reference.

BAS70DW-06-TP

Part No BAS70DW-06-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 70V SOT363
Datasheet
BAS70DW-06-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Diode Configuration 2 Pair Common Anode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 70V
Current - Average Rectified (Io) (per Diode) 70mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 15mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 100nA @ 50V
Operating Temperature - Junction -55°C to 125°C
Mounting SMD (SMT)
Case / Package SOT-363
Win Source Part Number 1022119-BAS70DW-06-TP
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian BAS70DW-06-TP CAD Model

Description

The Micro Commercial Co BAS70DW-06-TP is a Schottky diode with a maximum reverse voltage of 70V and a maximum forward voltage of 1V @ 15mA.

  • Maximum Reverse Voltage: 70V
  • Maximum Forward Voltage: 1V @ 15mA
  • Reverse Recovery Time: 5ns
  • Current Leakage: 100nA @ 50V
  • Diode Configuration: 2 Pair Common Anode
  • Average Rectified Current: 70mA (DC)
