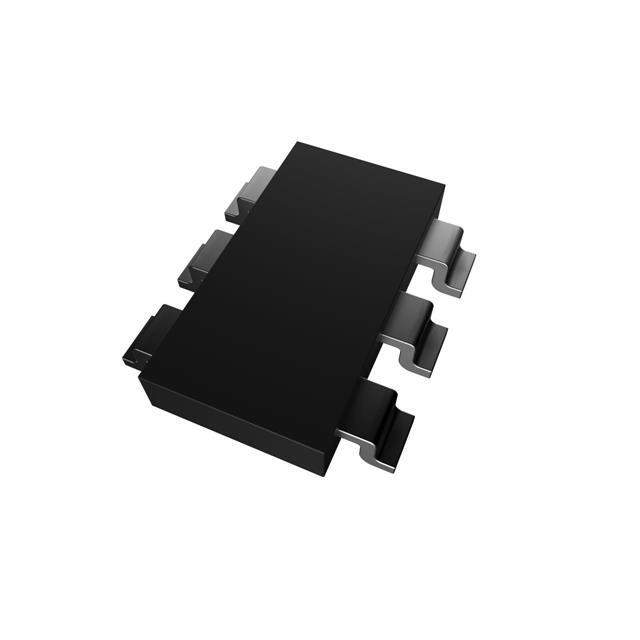

BAT54BRW-TP Real Image
Same model may have multiple batches, images only for reference.

BAT54BRW-TP

Part No BAT54BRW-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT363 / Diode Small Signal Schottky 30V 0.2A 6-Pin SOT-363 T/R
Datasheet
BAT54BRW-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel package
Diode Configuration 2 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Maximum) @ If 1V @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Operating Temperature - Junction -65°C ~ 125°C
Mounting SMD
Package 6-TSSOP, SC-88, SOT-363
Manufacturer Package SOT-363
Win Source Part Number 769687-BAT54BRW-TP
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name BAT54BRW
Introduction Date December 03, 2003
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian BAT54BRW-TP CAD Model

Description

The BAT54BRW-TP is a Schottky diode from Micro Commercial Co..

  • Package: 6-TSSOP, SC-88, SOT-363
  • Mounting Type: SMD
  • Reverse Recovery Time: 5ns
  • Maximum Forward Voltage: 1V @ 100mA
  • Maximum Reverse Voltage: 30V
  • Average Rectified Current: 200mA (DC)
