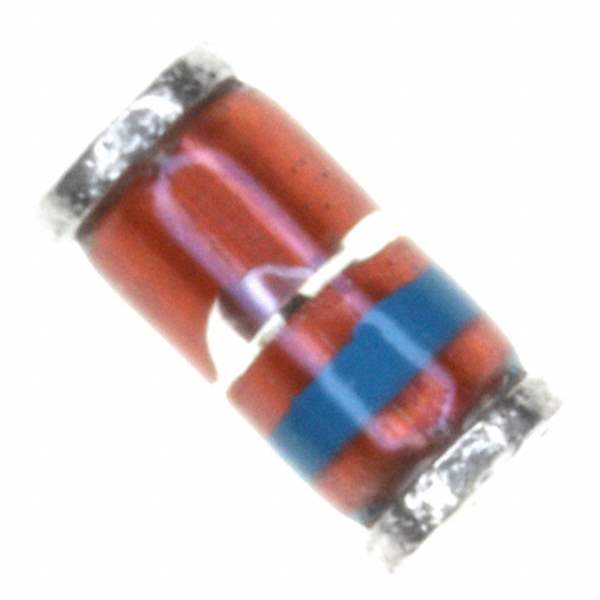

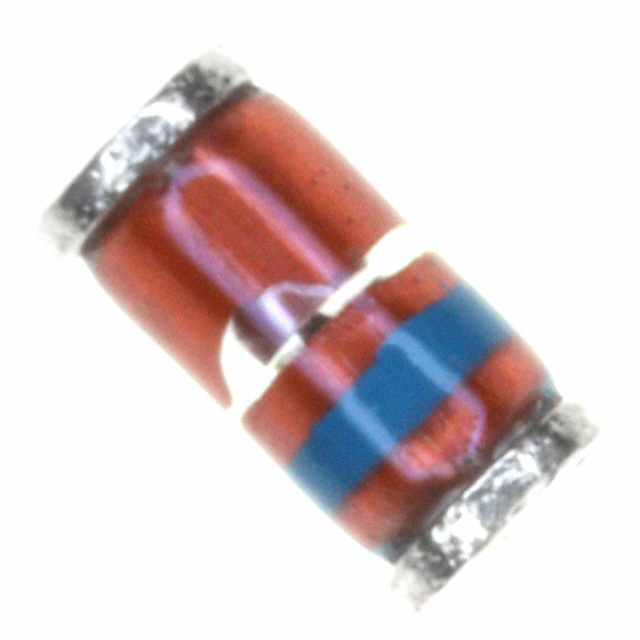

DL4736A-TP Micro Commercial Co
Same model may have multiple batches, images only for reference.

DL4736A-TP

Part No DL4736A-TP
Manufacturer Micro Commercial Co
Catalog Diodes - Zener - Single
Description DIODE ZENER 6.8V 1W MELF
Datasheet
DL4736A-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 6.8V
Tolerance ±5%
Maximum Power Dissipation 1W
Impedance (Max) (Zzt) 3.5 Ohm
Current - Reverse Leakage @ Vr 10μA @ 4V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 200mA
Temperature Range - Operating -65°C to 175°C
Mounting SMD (SMT)
Case / Package MELF
Win Source Part Number 1033446-DL4736A-TP
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian DL4736A-TP CAD Model

Description

The Micro Commercial Co DL4736A-TP is a zener diode with a nominal voltage of 6.8V and a maximum power dissipation of 1W.

  • Designed for: Provide a stable voltage even with a varying input voltage
  • Package: MELF
  • Supply and Demand Status: Sufficient
