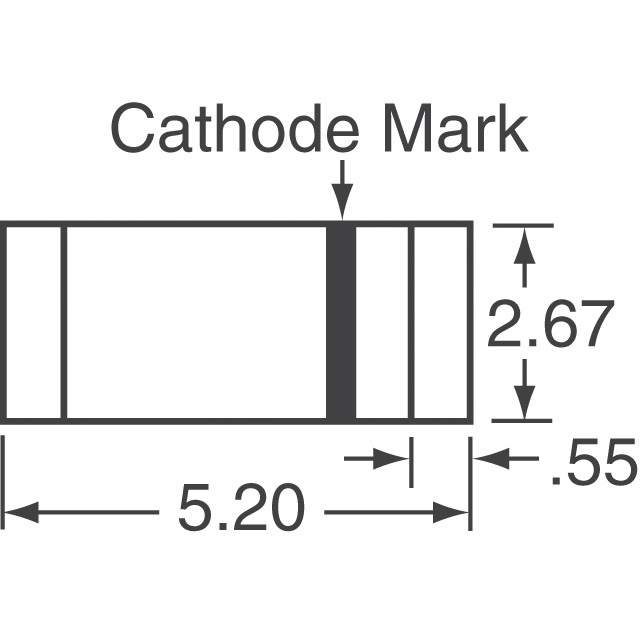

Same model may have multiple batches, images only for reference.
DL4755A-TP Micro Commercial Co
Same model may have multiple batches, images only for reference.

DL4755A-TP

Part No DL4755A-TP
Manufacturer Micro Commercial Co
Catalog Diodes - Zener - Single
Description DIODE ZENER 43V 1W MELF
Datasheet
DL4755A-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 43V
Tolerance ±5%
Maximum Power Dissipation 1W
Impedance (Max) (Zzt) 70 Ohm
Current - Reverse Leakage @ Vr 5μA @ 32.7V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 200mA
Temperature Range - Operating -65°C to 175°C
Mounting SMD (SMT)
Case / Package MELF
Win Source Part Number 1033453-DL4755A-TP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian DL4755A-TP CAD Model

Description

The Micro Commercial Co 1033453-DL4755A-TP is a zener diode with a zener voltage of 43V.

  • Zener Voltage: 43V
  • Forward Voltage: 1.2V @ 200mA
  • Reverse Leakage Current: 5μA @ 32.7V
  • Tolerance: ±5%
  • Impedance: 70 Ohm
  • Maximum Power Dissipation: 1W
  • Operating Temperature: -65°C to 175°C
  • Packaging: reel - TR package
  • Mounting Style: SMD (SMT)
  • Supply and Demand Status: balanced
  • Package Quantity: 5k pcs per package
  • Compliance: halogen-free requirements
  • ECCN: EAR99
