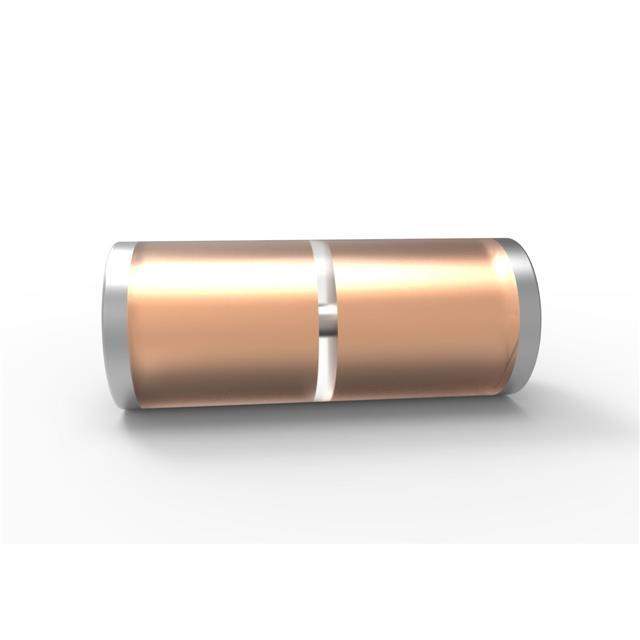

DL5245B-TP Real Image
Same model may have multiple batches, images only for reference.

DL5245B-TP

Part No DL5245B-TP
Manufacturer Micro Commercial Co
Catalog Diodes - Zener - Single
Description DIODE ZENER 15V 500MW MINI MELF / Zener Diode 15 V 500 mW ±5% Surface Mount Mini MELF
Datasheet
DL5245B-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Micro Commercial Co
Package Tape & Reel (TR)
Product Status Obsolete
Voltage - Zener (Nom) (Vz) 15 V
Tolerance ±5%
Power - Max 500 mW
Impedance (Max) (Zzt) 16 Ohms
Current - Reverse Leakage @ Vr 100 nA @ 11 V
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 200 mA
Temperature Range - Operating -65°C ~ 175°C
Mounting SMD (SMT)
Package / Case DO-213AC, MINI-MELF, SOD-80
Supplier Device Package Mini MELF
Base Product Number DL5245
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Other Names DL5245B-TPMSTR,DL5245BTP,DL5245B-TPMSCT,DL5245B-TPMSDKR
Standard Package 2,500
Win Source Part Number 1145040-DL5245B-TP
Ultra Librarian 3D Model Ultra Librarian DL5245B-TP CAD Model

Description

The DL5245B-TP is a zener diode from Micro Commercial Co.

  • Power: 500 mW
  • Voltage Forward: 1.1 V @ 200 mA
  • Reverse Leakage Current: 100 nA @ 11 V
  • Zener Voltage: 15 V
  • Impedance: 16 Ohms
  • Operating Temperature Range: -65°C to 175°C
  • Package: DO-213AC, MINI-MELF, SOD-80
  • Supplier Device Package: Mini MELF
  • ECCN: EAR99
  • REACH: Unaffected
