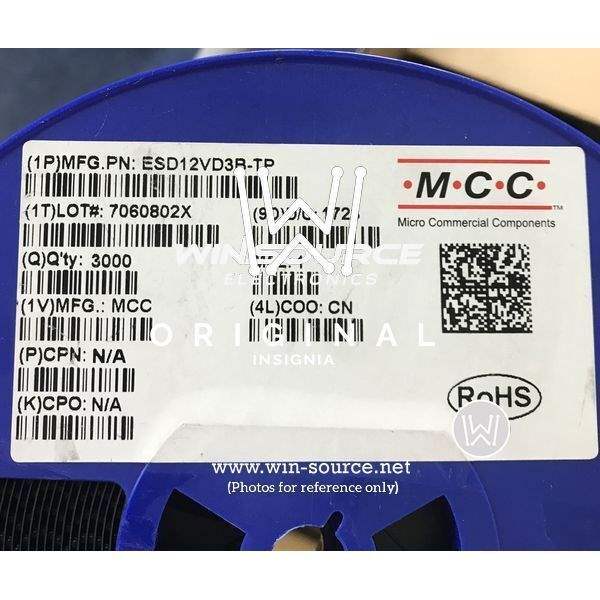

ESD12VD3B-TP Real Image ESD12VD3B-TP label picture
Same model may have multiple batches, images only for reference.
ESD12VD3B-TP Real Image ESD12VD3B-TP label picture
ESD12VD3B-TP Real Image ESD12VD3B-TP label picture
Same model may have multiple batches, images only for reference.

ESD12VD3B-TP

Part No ESD12VD3B-TP
Manufacturer Micro Commercial Co
Catalog TVS - Diodes
Description TVS DIODE 12VWM 15.5VC SOD323
Datasheet
ESD12VD3B-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V (Max)
Minimum Breakdown Voltage 13.5V
Max Clamping Voltage 15.5V
Peak Pulse Current(Ippm) 1A (8/20μs)
Power Dissipation - Pd 350W
Applications General Purpose
Capacitance @ Frequency 80pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-323
Win Source Part Number 1037047-ESD12VD3B-TP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian ESD12VD3B-TP CAD Model

Description

The Micro Commercial Co ESD12VD3B-TP is a Zener diode designed for use in circuit protection. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Standoff Voltage (Vwm): 12V (Max)
  • Breakdown Voltage (Min): 13.5V
  • Clamping Voltage (Max): 15.5V
  • Peak Pulse Current (Ippm): 1A (8/20μs)
  • Power Dissipation - Pd: 350W
  • Case/Package: SOD-323
  • Mounting: SMD (SMT) technology
  • Channel Type: Bidirectional, One Channel
  • Application: General Purpose
  • Capacitance: 80pF @ 1MHz
  • Operating Temperature: -55°C to 150°C (TJ)
  • Supply and Demand Status: Balanced
  • Quantity per Package: 3k pcs
