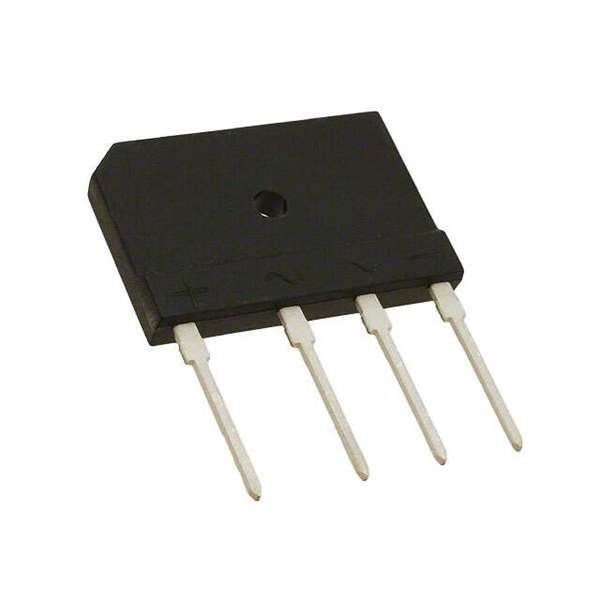

GBJ2506-BP Real Image
Same model may have multiple batches, images only for reference.

GBJ2506-BP

Part No GBJ2506-BP
Manufacturer Micro Commercial Co
Catalog Bridge Rectifiers
Description RECT BRIDGE GPP 25A 600V GBJ
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Max) @ If 1.05V @ 12.5A
Current - Reverse Leakage @ Vr 10μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBJ
Win Source Part Number 142987-GBJ2506-BP
Popularity Medium
Supply and Demand Status Limited
Quantity per package 750
Ultra Librarian 3D Model Ultra Librarian GBJ2506-BP CAD Model

Description

The Micro Commercial Co GBJ2506-BP is a single-phase diode ideal for discrete semiconductor products.

  • Voltage Peak Reverse: 600V
  • Current Average Rectified: 25A
  • Voltage Forward: 1.05V @ 12.5A
  • Current Reverse Leakage: 10μA @ 600V
  • Package: GBJ
  • Operating Temperature: -55°C to 150°C
