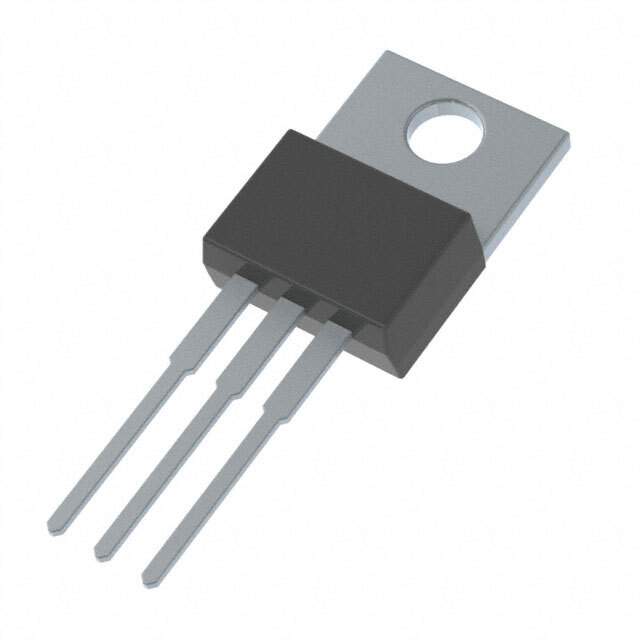

TIP100-BP Real Image
Same model may have multiple batches, images only for reference.

TIP100-BP

Part No TIP100-BP
Manufacturer Micro Commercial Co
Catalog Transistors (BJT) - Single
Description TRANS NPN DARL 60V 8A TO-220 / Trans Darlington NPN 60V 8A 80000mW 3-Pin(3+Tab) TO-220 Bulk/Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Tube
Transistor Type NPN - Darlington
Current - Collector (Ic) (Maximum) 8A
Voltage - Collector Emitter Breakdown (Maximum) 60V
Vce Saturation (Maximum) @ Ib, Ic 2.5V @ 80mA, 8A
Current - Collector Cutoff (Maximum) 50μA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 1000 @ 3A, 4V
Power - Max 80W
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package TO-220-3
Manufacturer Package TO-220
Win Source Part Number 796785-TIP100-BP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Family Name TIP100
Introduction Date September 14, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TIP100-BP CAD Model

Description

The TIP100 is a NPN Darlington transistor from Micro Commercial Co.

  • Maximum Power: 80W
  • Collector Current: 8A
  • Voltage Collector Emitter Breakdown: 60V
  • Package: TO-220-3
  • Operating Temperature Range: -55°C to 150°C
  • DC Current Gain: 1000 @ 3A and 4V
  • Family: TIP100
