Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes>Rectifiers>Single Diodes
Mfr Microchip Technology
Series -
Package Bulk
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 9 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 150 ns
Current - Reverse Leakage @ Vr 1 µA @ 100 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case B, Axial
Supplier Device Package B, Axial
Operating Temperature - Junction -65°C ~ 175°C
Base Product Number 1N5416
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 1 pcs
Win Source Part Number 1380624-1N5416
Ultra Librarian 3D Model Ultra Librarian 1N5416 CAD Model

Description

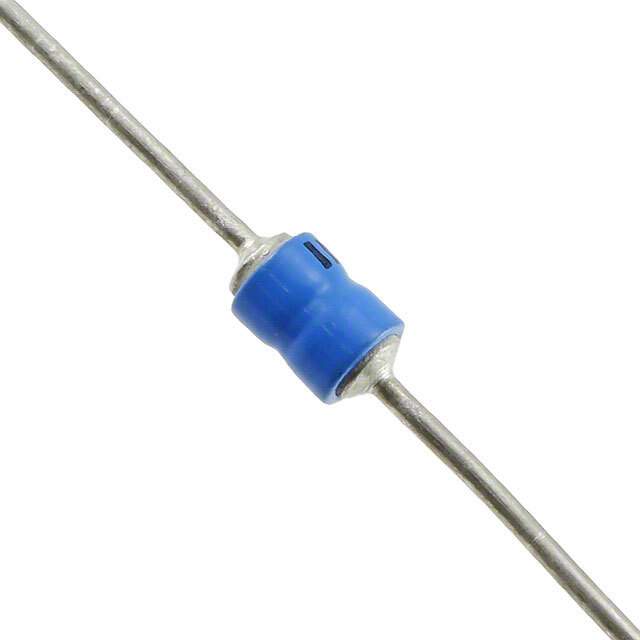

The 1N5416 is a high-performance, versatile diode developed by Microchip Technology, renowned for their reliable and innovative semiconductor products. This diode is designed to cater to a wide array of applications, from power management to signal processing. Its robust construction and superior specifications make it a preferred choice for engineers and designers looking for a reliable component that can handle demanding electrical environments.

Key Features

  • High Voltage Tolerance: The 1N5416 is capable of withstanding high reverse voltages, making it suitable for applications that experience high voltage transients.
  • Low Forward Voltage Drop: Ensures high efficiency by minimizing power loss during operation, which is critical for power-sensitive designs.
  • Fast Switching Speed: Designed for applications requiring rapid switching, this diode responds quickly to changes in voltage, allowing for efficient operation in high-frequency circuits.
  • Robust Thermal Performance: With a high maximum operating temperature, the 1N5416 can maintain stable performance even in thermally challenging conditions.

Applications

The 1N5416 diode from Microchip Technology is a versatile component that can be used in a variety of electronic circuits. Its high voltage tolerance and fast switching capabilities make it ideal for use in:

  • Power supplies and converters
  • Protection circuits
  • Rectification applications
  • Switching power regulators
  • Freewheeling diodes in motor control circuits
  • High-frequency RF circuits

Reliability and Quality

Microchip Technology is committed to providing high-quality products that meet stringent industry standards. The 1N5416 diode is no exception, offering excellent reliability and performance consistency. It is manufactured in state-of-the-art facilities, ensuring that each component meets Microchip's high standards for quality and durability.

Conclusion

Whether you're designing a complex power management system or a simple signal processing circuit, the 1N5416 diode from Microchip Technology offers the reliability, efficiency, and speed required for your application. Its robust design and versatile features make it an essential component for any electronic project that demands high-quality performance.
