Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr STMicroelectronics
Series STM32MP1
Package Tray
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 2 Core, 32-Bit
Speed 209MHz, 800MHz
Co-Processors/DSP ARM® Cortex®-M4
RAM Controllers DDR3, DDR3L, LPDDR2, LPDDR3
Graphics Acceleration Yes
Display & Interface Controllers HDMI-CEC, LCD
Ethernet 10/100Mbps, GbE
USB USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating -20°C ~ 105°C (TJ)
Security Features ARM TZ

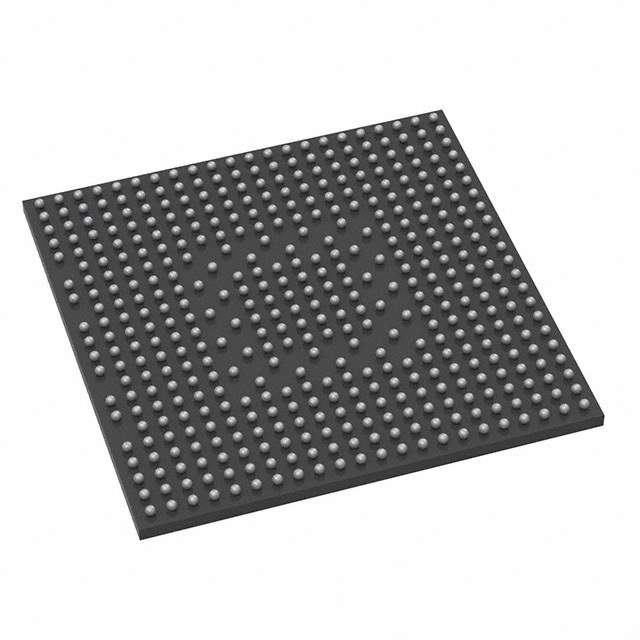

Package / Case 448-LFBGA
Supplier Device Package 448-LFBGA (18x18)
Additional Interfaces CAN, Ethernet, I²C, MMC/SD/SDIO, SPDIF, SPI, UART, USB
Base Product Number STM32
Other Names 497-STM32MP157DAA1
Standard Package 84
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1261833-STM32MP157DAA1
Ultra Librarian 3D Model Ultra Librarian STM32MP157DAA1 CAD Model

Description

The STM32MP157DAA1 is a high-performance microprocessor unit from STMicroelectronics that integrates a flexible dual-core architecture with Cortex-A7 cores operating at up to 800MHz and a Cortex-M4 core operating at up to 209MHz. This advanced MPU is part of the STM32MP1 series, designed to offer a balance between processing power, real-time functions, and graphical user interface (GUI) support, making it an ideal choice for a wide range of applications including industrial, consumer, health, and wellness products.

At the heart of STM32MP157DAA1 lies an array of features that make it a versatile and powerful component for sophisticated embedded systems. The integration of a 3D GPU provides the capability to run rich graphical interfaces, while the support for multiple audio and video formats enhances multimedia applications. The MPU also includes a comprehensive set of peripherals, including multiple I/Os, and high-speed connectivity options such as Gigabit Ethernet, USB OTG, and several other communication interfaces.

Security is a key aspect of the STM32MP157DAA1, equipped with hardware cryptographic accelerators, a secure boot process, and TrustZone for ARMv7-M. These features ensure that applications built on this MPU can offer robust protection against unauthorized access and software piracy.

Developers can also take advantage of the STM32 ecosystem, which includes extensive development tools and software support. The STM32MP157DAA1 is supported by the STM32CubeMP1 software package, providing drivers, middleware, and a Linux® distribution to streamline the development process and reduce time to market.

In summary, the STM32MP157DAA1 from STMicroelectronics is a powerful and flexible MPU that is well-suited for a range of demanding applications. Its dual-core architecture, rich set of peripherals, advanced security features, and strong ecosystem support make it an attractive option for designers looking to create high-performance embedded systems.
