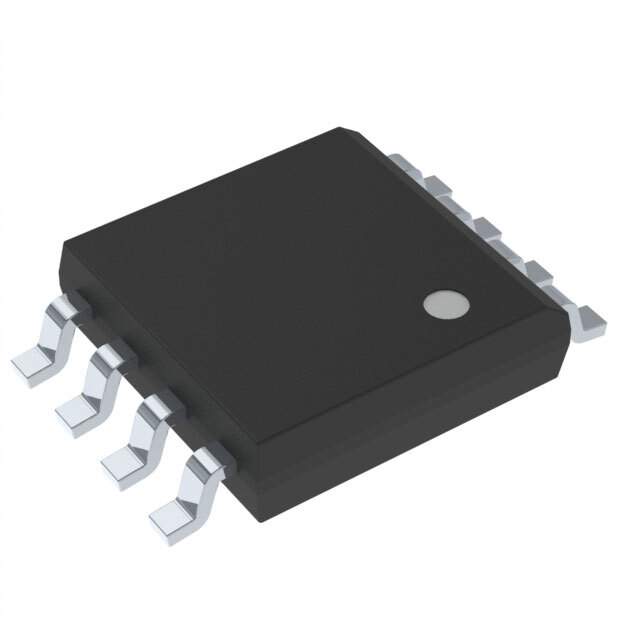

Microchip Technology AT45DB011D-SH-B DataFlash

The AT45DB011D-SH-B is a high-performance 1-Mbit DataFlash memory chip from the renowned manufacturer, Microchip Technology. This compact, serial interface Flash memory is an ideal storage solution for a wide array of electronic applications where efficient data manipulation, high-speed read/write operations, and reliable data retention are paramount.

Featuring a density of 1 megabit, the AT45DB011D-SH-B offers ample space for firmware storage, parameter settings, or small application code. It operates through a SPI (Serial Peripheral Interface) that ensures compatibility with a multitude of microcontroller architectures, making it a versatile choice for embedded systems designers.

One of the standout features of this DataFlash is its flexible page architecture. The AT45DB011D-SH-B is organized as 512 pages of 264 bytes each, which allows for both byte and page-level operations. This flexibility facilitates efficient data handling, enabling designers to optimize the memory operations for their specific needs.

The device supports rapid read and write speeds, which significantly reduce the time required for data transfer, thus enhancing the overall performance of the system. The chip also boasts low-power consumption, making it an excellent choice for portable and battery-operated devices where power efficiency is critical.

Built with reliability in mind, the AT45DB011D-SH-B includes an internal error correction mechanism that ensures data integrity. It also features industry-standard security protocols to protect sensitive data, providing peace of mind for applications where data security is a concern.

With an operating temperature range of -40°C to +85°C, this DataFlash can withstand harsh environments, which is essential for industrial and automotive applications. Its small form factor and surface-mount package allow it to be easily integrated into space-constrained designs.

In summary, the AT45DB011D-SH-B from Microchip Technology is a robust, high-speed memory solution that offers designers the reliability and flexibility needed for modern electronic applications. Its advanced features and compatibility make it an excellent choice for a broad range of uses, from simple data logging to complex, multi-functional embedded systems.
