The ATF1504AS-7JC84 is a high-performance, programmable logic device (PLD) from Microchip Technology, designed to meet the needs of a wide array of applications. This complex programmable logic device (CPLD) is part of the ATF15xxAS family, known for their reliability and flexibility in system design.

Key Features

• High-Density Design: The ATF1504AS-7JC84 offers a dense architecture with 64 macrocells, providing designers with ample resources for complex logic implementations.
• Speed Grade: The '-7' speed grade variant of this device delivers fast performance, making it suitable for high-speed applications.

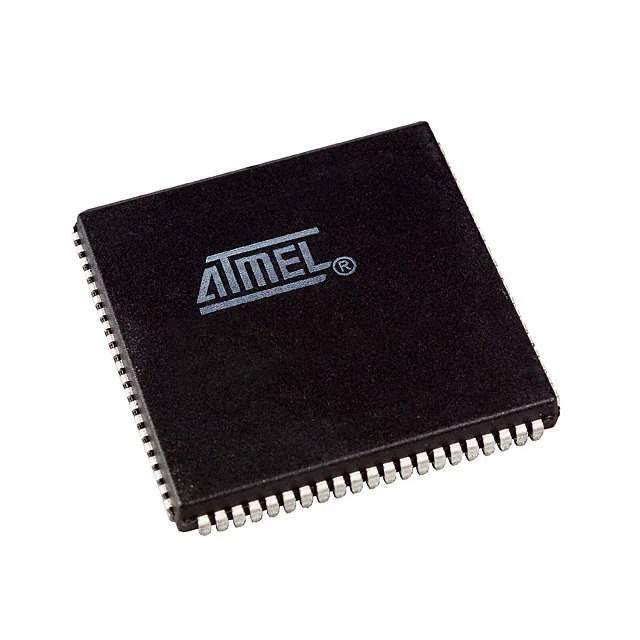

• Package Type: Encased in a 84-lead PLCC (Plastic Leaded Chip Carrier) package, the device ensures a compact footprint while allowing for efficient heat dissipation and easy integration into a variety of board layouts.
• Reprogrammability: With its in-system programmability feature, the ATF1504AS-7JC84 can be reprogrammed for rapid prototyping and iterative design processes, adding to its versatility in development and production environments.
• Low Power Consumption: The device is optimized for low power operation, making it an ideal choice for power-sensitive applications.
• Software Support: Supported by Microchip's design software, users can take advantage of an intuitive development environment to streamline the design process.

Applications

The ATF1504AS-7JC84 is well-suited for a variety of applications, including but not limited to:

• Automotive systems
• Industrial control systems
• Telecommunications infrastructure
• Consumer electronics
• Medical devices

Technical Specifications

This CPLD features a user-programmable logic array, providing a customizable solution for digital logic needs. It operates with a 5V power supply and includes an array of input/output blocks for interfacing with other components in a system. The ATF1504AS-7JC84 also boasts a robust set of interconnects, ensuring reliable communication between macrocells.

For more detailed technical information, datasheets, and support resources, please visit Microchip Technology's official website or contact their customer support team.
