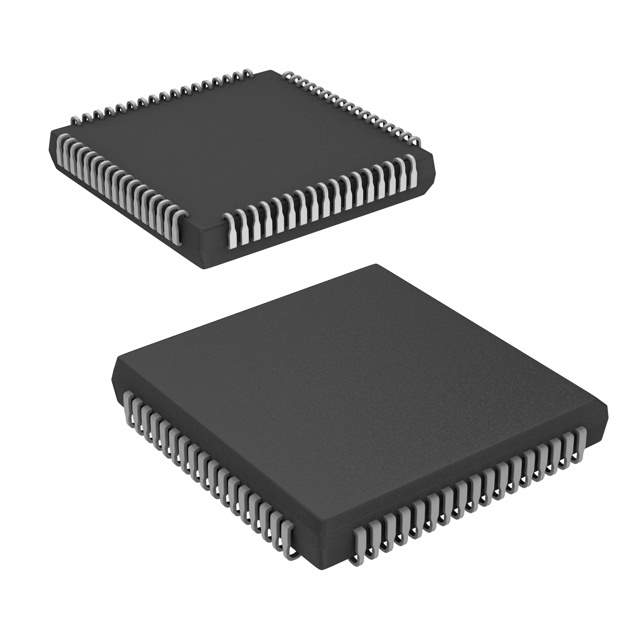

The ATF1504ASL-25JI68 is a high-performance, programmable logic device (PLD) from Microchip Technology, designed to offer a flexible and efficient solution for a wide range of digital logic applications. This complex programmable logic device (CPLD) is part of the Atmel ATF15xx series and is characterized by its high functionality and low power consumption, making it an ideal choice for system-level integration in various industries.

Key Features

• High Density and Speed: The ATF1504ASL-25JI68 boasts a high logic density with 64 macrocells and 68-pin PLCC (Plastic Leaded Chip Carrier) packaging. It operates with a maximum speed of 25 MHz, providing a balance between performance and power consumption.
• Advanced Architecture: It features an advanced architecture with flexible logic allocation and a versatile interconnect matrix, which allows for efficient logic implementation and easy reconfiguration to meet specific design requirements.
• ISP (In-System Programmability): This device supports in-system programmability via JTAG (Joint Test Action Group) interface, enabling designers to program and reprogram the logic device in the final system without the need for additional hardware.
• Low Power Operation: The ATF1504ASL-25JI68 is designed for low power operation, which is crucial for battery-operated and power-sensitive applications. It offers a power-saving feature that reduces power consumption in standby mode.
• Security and Reliability: Microchip Technology ensures that this CPLD provides a secure and reliable solution, featuring a security bit for protection against unauthorized access and a high MTBF (Mean Time Between Failures) for long-term reliability.

Applications

The ATF1504ASL-25JI68 is versatile enough to be used in a multitude of applications including but not limited to industrial control systems, automotive electronics, telecommunications, consumer electronics, and data processing systems. Its reprogrammable nature makes it particularly suitable for prototyping and iterative design processes.

Conclusion

Overall, the ATF1504ASL-25JI68 from Microchip Technology is a robust and adaptable CPLD that offers designers a compact, efficient, and powerful solution for implementing custom logic. Its combination of speed, density, and low power consumption, along with the convenience of in-system programmability, makes it a compelling choice for a wide array of electronic designs.
