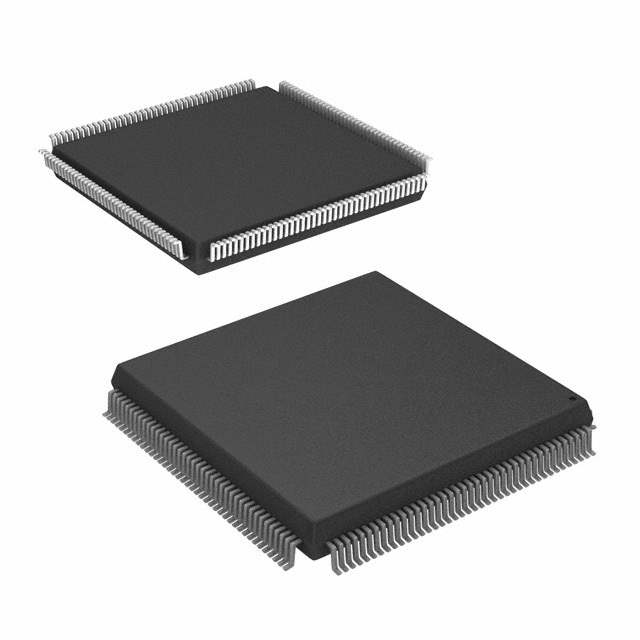

The ATF1508ASVL-20QC160 is a high-performance Complex Programmable Logic Device (CPLD) from Microchip Technology, designed to deliver exceptional logic integration and flexibility for a wide range of applications. This device is part of the Atmel ATF15xxASVL family of CPLDs that are known for their low power consumption and high-speed operation.

Key Features

• High-Density Programmable Logic: The ATF1508ASVL-20QC160 offers 128 macrocells that can be configured to implement complex logic functions, enabling designers to integrate multiple devices into a single chip.
• High-Speed Performance: With a maximum system frequency of 20 MHz, this device is capable of meeting the speed requirements of high-performance designs.
• Power-Efficient Operation: The low-power architecture of the ATF1508ASVL series ensures that power consumption is minimized, making it suitable for power-sensitive applications.
• Flexible I/O Options: It features 160 pins with versatile I/O standards support, providing ample connectivity options and the ability to interface with a wide range of peripherals and other digital systems.
• Easy Programmability: The device can be easily programmed using industry-standard tools, offering a user-friendly approach to CPLD design and implementation.
• Security Features: Security is a priority with the ATF1508ASVL-20QC160, featuring a security bit to protect proprietary designs from unauthorized access and duplication.

Applications

This CPLD is ideal for use in various applications, including but not limited to:

• Industrial control systems
• Automotive electronics
• Telecommunications infrastructure
• Consumer electronics
• Data communication equipment

Quality and Reliability

Microchip Technology is committed to delivering high-quality products. The ATF1508ASVL-20QC160 is manufactured to stringent standards, ensuring reliable performance in demanding environments. With its robust feature set and Microchip's reputation for quality, this CPLD is an excellent choice for designers looking to create sophisticated and reliable digital systems.
