Microchip Technology's ATMEGA169PA-MCH: A Versatile Microcontroller

The ATMEGA169PA-MCH is a feature-rich microcontroller from Microchip Technology, engineered to provide an optimal balance between power consumption and performance. This 8-bit MCU is built on the advanced AVR RISC architecture, making it ideal for a wide range of applications in the industrial, automotive, and consumer electronics sectors.

Key Features

• High-Performance AVR CPU: At the core of the ATMEGA169PA-MCH is a high-speed AVR CPU, which operates at up to 16MHz. With a throughput approaching 1 MIPS per MHz, this microcontroller executes powerful instructions in a single clock cycle, leading to a remarkable level of performance.
• Robust Memory Configuration: It comes equipped with 16KB of in-system self-programmable flash memory, 512 Bytes EEPROM, and 1KB SRAM, providing ample space for complex applications and data storage.
• Extensive Peripheral Set: The device includes a range of integrated peripherals, such as a 10-bit ADC with multiple channels, PWM channels, and multiple timers, enhancing its utility for control-based tasks.
• Power Efficiency: Designed for power-sensitive applications, the ATMEGA169PA-MCH offers multiple power-saving modes, including Idle, ADC Noise Reduction, Power-save, Power-down, and Standby modes, allowing for efficient power management.
• On-chip Debugging: The microcontroller supports On-chip Debugging via JTAG interface, facilitating easier development and troubleshooting.

Applications

The versatile nature of the ATMEGA169PA-MCH makes it suitable for a wide array of applications. These include:

• Automotive systems
• Battery management
• Industrial control systems
• Smart home devices
• Medical devices
• Wearable technology

Package and Availability

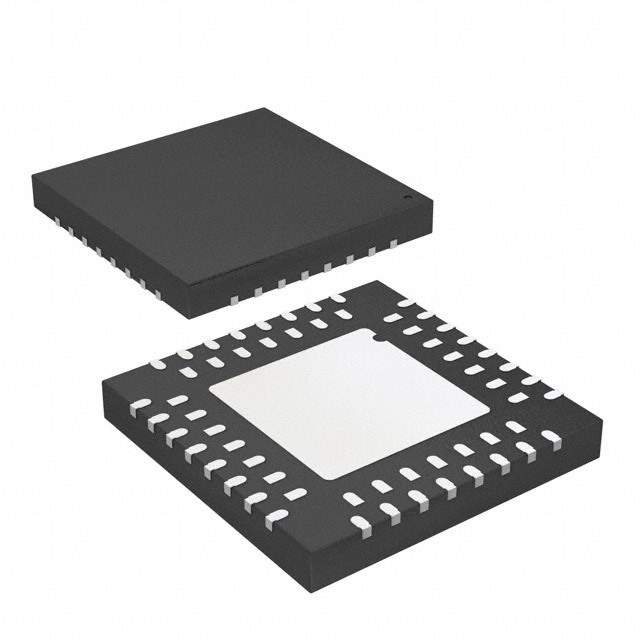

The ATMEGA169PA-MCH is available in a 64-pad QFN/MLF package, ensuring a compact footprint for space-constrained designs. Microchip Technology provides comprehensive support for this microcontroller, including development tools, software libraries, and application notes to streamline the design process. With its combination of efficiency, performance, and flexibility, the ATMEGA169PA-MCH is a compelling choice for designers looking to create sophisticated and power-aware electronic products.
