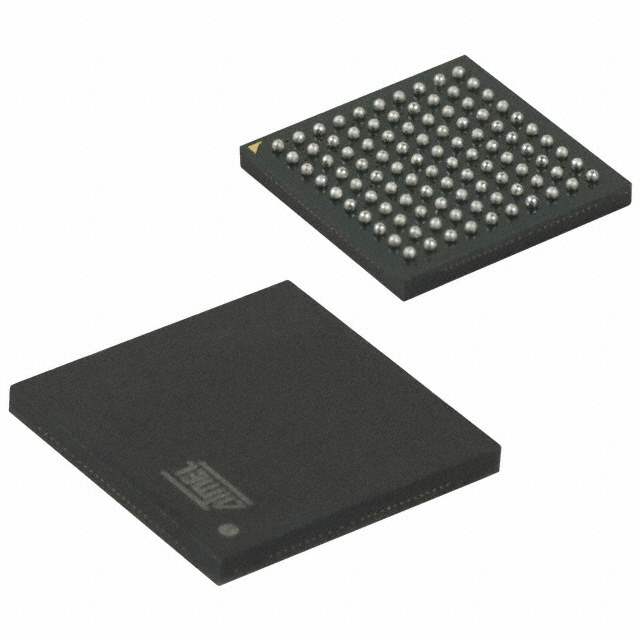

Microchip Technology's ATSAM3A4CA-CU Product Overview

The ATSAM3A4CA-CU is a high-performance, feature-rich microcontroller from Microchip Technology, designed to cater to a wide range of industrial and consumer applications. This powerful microcontroller is part of the SAM3A series, which is known for its high-speed computing capabilities, robust design, and versatile connectivity options.

At the heart of the ATSAM3A4CA-CU is an ARM Cortex-M3 processor, which operates at a maximum speed of 84 MHz, providing the computational horsepower needed for complex tasks. The device comes with a substantial 256 KB of flash memory, allowing for ample storage of application code, and 64 KB of SRAM, which is more than enough for real-time data processing and buffering.

Key Features:

• Core: ARM Cortex-M3 processor running up to 84 MHz
• Memory: 256 KB of flash and 64 KB of SRAM
• Connectivity: Full-speed USB Device and host, Dual CAN, and Ethernet MAC
• I/O: Up to 103 input/output lines, supporting a variety of peripheral functions
• Power Efficiency: Low-power operation modes for energy-sensitive applications
• ADC: 12-bit Analog-to-Digital Converter with up to 16 channels
• Timers: Multiple 32-bit timers, including a PWM generator for motor control
• Security: Hardware encryption support for secure data communication

The microcontroller is equipped with a full complement of peripheral interfaces, including Full-speed USB Device and host capabilities, Dual CAN interfaces for automotive and industrial communication networks, and an Ethernet MAC for networked applications. The ATSAM3A4CA-CU also boasts up to 103 I/O lines, which are multiplexed with various peripheral functions, providing developers with flexibility in designing their system interfaces.

Designed with power efficiency in mind, the ATSAM3A4CA-CU supports multiple power-saving modes, making it suitable for battery-operated devices or other applications where power consumption is a critical factor. Its integrated 12-bit ADC with up to 16 channels enables precise analog signal measurement, and the inclusion of multiple 32-bit timers, including a PWM generator, is ideal for sophisticated control applications such as motor control.

Security features are also embedded within the ATSAM3A4CA-CU, with hardware encryption modules to ensure secure data communication, a feature increasingly important in the modern era of connected devices.

In summary, Microchip Technology's ATSAM3A4CA-CU microcontroller is a robust, versatile, and efficient solution for a wide array of applications, combining high-performance processing with an extensive set of peripherals and security features to meet the demands of today's innovative electronic designs.
