Product Overview: ATTINY102-M8R from Microchip Technology

The ATTINY102-M8R is an integral part of Microchip Technology's tinyAVR® family, known for its compact, high-performance microcontrollers. This particular model is designed to deliver a perfect blend of power efficiency and processing capability, making it an ideal choice for a broad range of applications.

Key Features

• High-Performance, Low-Power AVR® 8-Bit Microcontroller: The ATTINY102-M8R boasts an advanced RISC architecture that enables the microcontroller to execute powerful instructions in a single clock cycle. This feature ensures that the device operates at a level of efficiency that is perfect for power-sensitive applications.
• Memory: It comes with 1KB of in-system programmable Flash memory, 32B SRAM, and 32B EEPROM. This memory configuration provides ample space for application code and data storage, which is essential for complex tasks.
• Peripheral Features: The device includes a range of peripherals such as an 8-bit timer with a prescaler and two PWM channels, an ADC with internal voltage references, and a programmable watchdog timer with an internal oscillator. These built-in peripherals reduce the need for external components, saving space and cost.
• Operating Conditions: The ATTINY102-M8R operates within a voltage range of 1.8-5.5V, ensuring functionality across various power supplies and environments. It also has a wide operating temperature range, making it suitable for industrial applications.

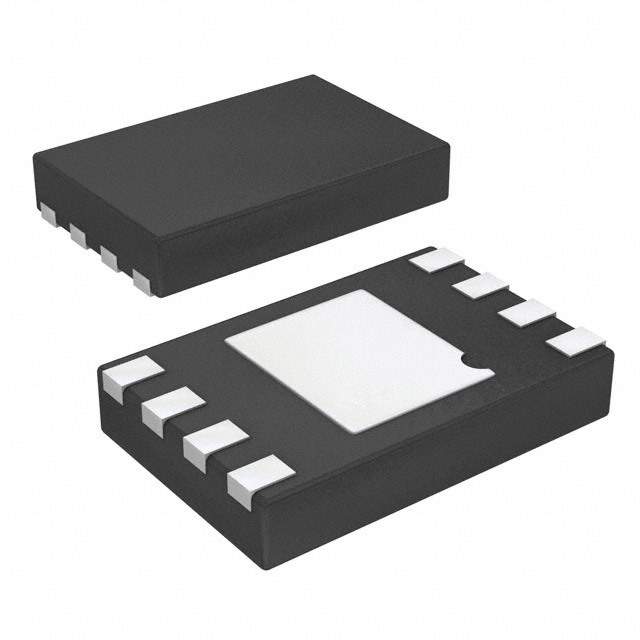

• Packaging: Available in an 8-pin UDFN package, the microcontroller is designed for space-constrained applications, offering a minimal footprint on the PCB.

Applications

The ATTINY102-M8R is versatile and can be used in applications ranging from consumer electronics to industrial control systems. Its small size and low power consumption make it particularly well-suited for wearable devices, IoT endpoints, and battery-operated gadgets.

Support and Resources

Microchip Technology provides extensive support for the ATTINY102-M8R through their online resources. Developers can access datasheets, technical documentation, application notes, and development tools to facilitate the design and implementation process. Additionally, the Microchip community and customer service are available to assist with any questions or challenges that may arise.
