The DSC1101DM2-020.0000 is a high-performance, precision MEMS oscillator from Microchip Technology, a leader in microcontroller, mixed-signal, analog, and Flash-IP solutions. Designed to provide a stable and reliable clock source, this component is a perfect fit for a wide array of electronic applications ranging from networking, telecommunications, and storage systems to digital cameras and smart consumer electronics.

Key Features

• Frequency: The oscillator operates at a fixed frequency of 20.0000 MHz, offering a stable timekeeping solution for your designs.
• Supply Voltage: It is designed to work with a supply voltage of 2.5V to 3.3V, making it versatile for various power supply configurations.
• Output Type: This device provides a CMOS output, ensuring compatibility with most digital circuits.

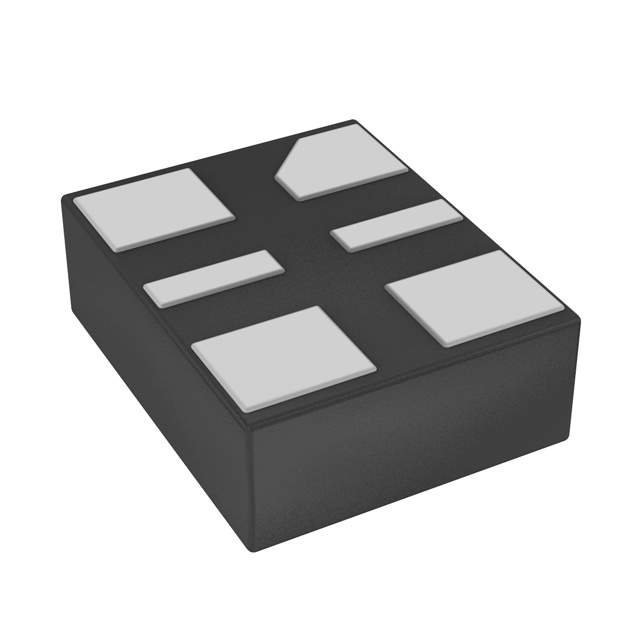

• Package: Encased in a compact 6-SMD, No Lead package, the DSC1101DM2-020.0000 is designed for space-constrained applications.
• Temperature Stability: It has excellent temperature stability, ensuring consistent performance over a wide temperature range.
• Low Jitter: The low phase jitter of the oscillator makes it an ideal choice for high-speed digital applications where timing precision is critical.

Applications

The DSC1101DM2-020.0000 is designed for use in a range of applications, including but not limited to:

• High-speed data communications
• Storage systems requiring precise timing
• Networking equipment such as routers and switches
• Consumer electronics including set-top boxes and digital cameras
• Industrial and automotive systems that demand reliable clock sources

Quality and Reliability

Microchip Technology is committed to providing high-quality products. The DSC1101DM2-020.0000 is built to meet stringent quality standards, ensuring high reliability and performance for the most demanding applications. With its robust design and proven technology, this MEMS oscillator is an excellent choice for designers looking for a compact, efficient, and precise timing solution.
