Product Overview

Introducing the DSC1121AE1-075.0000, a high-performance, precision MEMS oscillator from the renowned manufacturer Microchip Technology. This state-of-the-art component is designed to deliver exceptional stability and accuracy for your electronic applications.

Key Features

• Frequency: The oscillator operates at a standard frequency of 75.0000 MHz, providing a reliable clock source for high-speed digital systems.
• Supply Voltage: It is designed to work with a supply voltage of 1.8V to 3.3V, making it versatile for various applications and compatible with a wide range of devices.
• Output Type: The DSC1121AE1-075.0000 features a CMOS output, ensuring compatibility with most TTL and CMOS logic families.
• Stability: With excellent frequency stability, this oscillator maintains consistent performance across temperature and voltage variations, ensuring reliable operation in diverse environments.

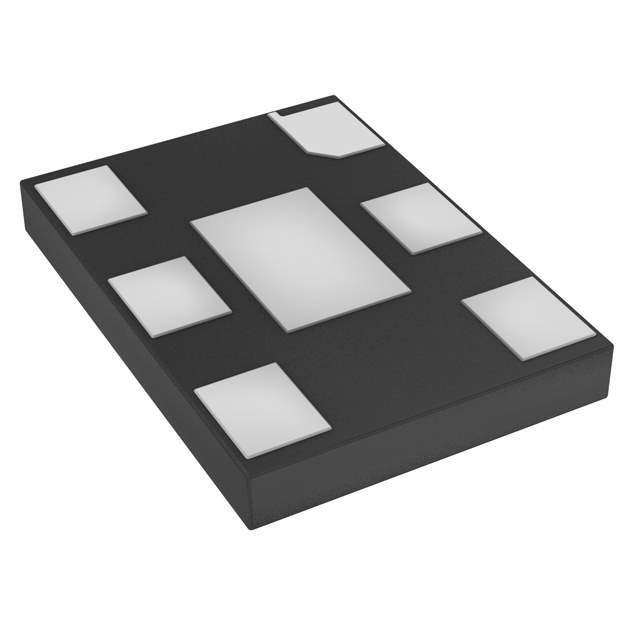

• Package / Case: It comes in a compact 6-SMD, No Lead package, which allows for efficient use of PCB space without compromising on performance.
• Operating Temperature: The device is designed to operate over an extended temperature range of -40°C to +85°C, suitable for industrial and commercial applications.
• Low Jitter: The DSC1121AE1-075.0000 boasts low phase jitter, which is critical for applications requiring high precision timing such as telecommunications and networking equipment.

Applications

The DSC1121AE1-075.0000 is ideal for use in a wide array of applications where accurate timing is paramount. These include, but are not limited to, Ethernet, USB, PCI-Express interfaces, and high-speed data converters. Its robust design also makes it suitable for industrial controls, test and measurement equipment, and storage systems that operate in harsh environments.

Quality and Reliability

Microchip Technology is committed to providing products that meet the highest standards of quality and reliability. The DSC1121AE1-075.0000 is no exception, with rigorous testing and quality control measures in place to ensure that each oscillator performs to specifications.

Ordering Information

For those looking to integrate the DSC1121AE1-075.0000 into their designs, detailed datasheets and technical support are available from Microchip Technology. Contact your local distributor or visit the Microchip Technology website for ordering information and to explore additional product resources.
