Products specifications

Category Crystals, Oscillators, Resonators - Pin Configurable/Selectable Oscillators
Mfr Microchip Technology
Series DSC60XX
Package Tube
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 20MHz, 25MHz
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height 0.035" (0.89mm)
Package / Case 4-VLGA
Standard Package 140
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1343359-DSC6023JI2A-00A4
Ultra Librarian 3D Model Ultra Librarian DSC6023JI2A-00A4 CAD Model

Description

Microchip Technology's DSC6023JI2A-00A4 MEMS Oscillator

The DSC6023JI2A-00A4 is a cutting-edge MEMS (Micro-Electro-Mechanical Systems) oscillator from the renowned manufacturer Microchip Technology. This high-performance oscillator is designed to meet the demanding requirements of modern electronic applications, offering a perfect blend of reliability, stability, and energy efficiency.

With an operating temperature range of -40°C to +85°C, the DSC6023JI2A-00A4 ensures consistent performance across various environmental conditions. This makes it an ideal choice for industrial, automotive, and consumer electronics that require robust operation under extreme temperatures.

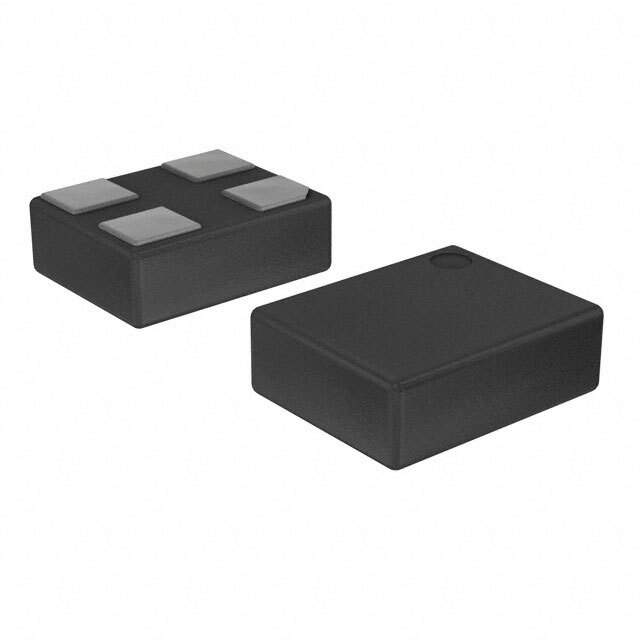

The device comes in a compact 4-SMD, no lead package, which allows for space-saving on PCBs (Printed Circuit Boards) and is especially beneficial for applications with limited board real estate. Its small form factor does not compromise its functionality or performance, making it a versatile component for a wide range of electronic devices.

Featuring a frequency range of 1 MHz to 150 MHz, the DSC6023JI2A-00A4 provides the flexibility to cater to various clocking needs. Whether it's for microcontrollers, communication devices, or digital systems that require precise timing, this oscillator can be configured to the specific frequency required for the application.

The oscillator operates with a supply voltage of 1.8V to 3.3V, offering compatibility with many modern low-power devices and systems. Its low power consumption is particularly advantageous for battery-powered applications, where energy efficiency is paramount.

With a frequency stability of ±25 ppm, the DSC6023JI2A-00A4 ensures high precision in timing, which is critical for applications where timing accuracy is crucial, such as networking equipment and high-speed data communication.

Microchip Technology's commitment to quality is evident in the DSC6023JI2A-00A4, which is designed to provide a reliable, long-term timing solution. The integration of MEMS technology in this oscillator underscores a shift towards more resilient, compact, and efficient components in the electronics industry.

In summary, the DSC6023JI2A-00A4 from Microchip Technology is an exceptional choice for designers looking for a high-quality, versatile, and efficient timing solution for their electronic projects.
