Microchip Technology DSC6121HI2A-00AM MEMS Oscillator

The DSC6121HI2A-00AM is a high-performance, ultra-low-power MEMS oscillator from Microchip Technology, designed to deliver exceptional frequency stability and reliability for a wide range of applications. This precision oscillator is ideal for replacing traditional crystal oscillators in embedded systems, offering an advanced level of integration that helps reduce the overall footprint and complexity of circuit designs.

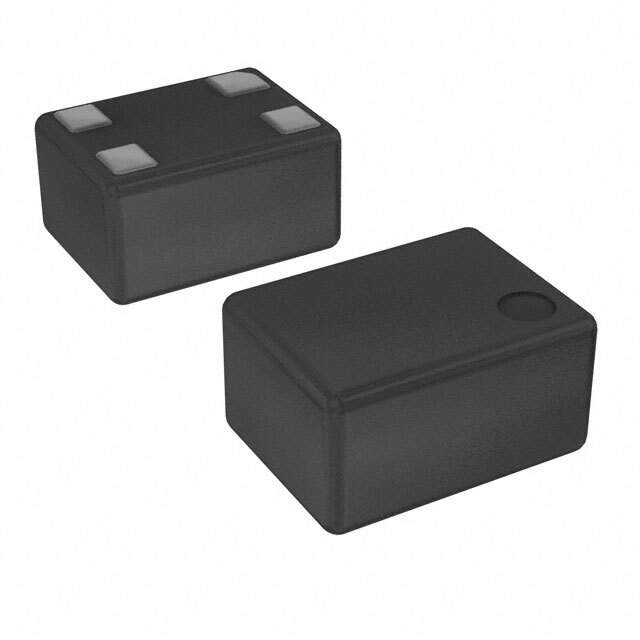

With a nominal frequency of 25 MHz, the DSC6121HI2A-00AM provides a stable clock reference that can be used in various digital applications, including microcontroller-based systems, IoT devices, and portable electronics. Its compact 4-pin 2.5mm x 2.0mm SMD package makes it suitable for space-constrained designs, ensuring it fits seamlessly into modern miniaturized electronics.

The oscillator operates over a wide temperature range of -40°C to +85°C, ensuring reliable performance under varying environmental conditions. This feature, combined with a supply voltage range of 1.71V to 3.63V, makes the DSC6121HI2A-00AM versatile for use in both industrial and consumer applications.

Key features of the DSC6121HI2A-00AM include:

• Frequency Range: 25 MHz
• Supply Voltage: 1.71V to 3.63V
• Operating Temperature Range: -40°C to +85°C
• Package: 4-SMD, No Lead (2.5mm x 2.0mm)
• Frequency Stability: ±25 ppm
• Output Type: CMOS

One of the standout attributes of the DSC6121HI2A-00AM is its low jitter and phase noise performance, which is crucial for applications that require high signal integrity, such as high-speed data communications and precision timing solutions. Additionally, the device's integrated Phase-Locked Loop (PLL) enables frequency multiplication, providing flexibility for system design.

Microchip Technology's commitment to quality and reliability is evident in the DSC6121HI2A-00AM, with the oscillator being both RoHS and Pb-free compliant, ensuring it meets the latest environmental standards. This product is an excellent choice for designers looking for a stable, reliable, and easy-to-integrate timing solution for their next project.
