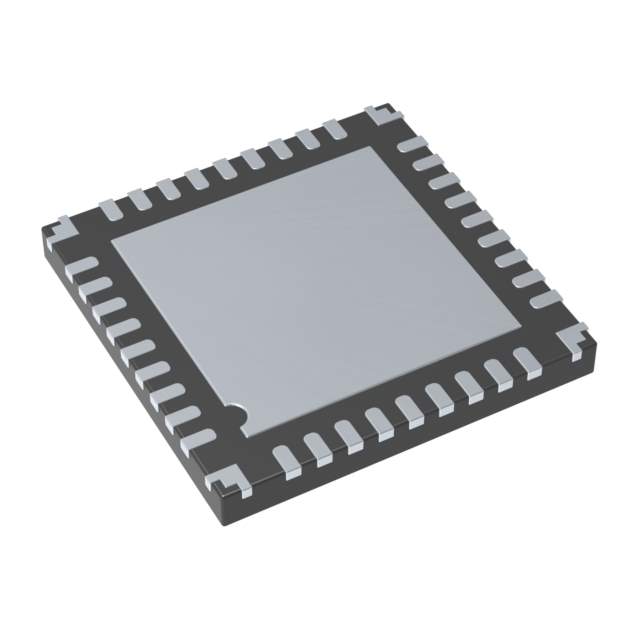

dSPIC33CH128MP503-I/M5 Microcontroller

The dSPIC33CH128MP503-I/M5 is a high-performance digital signal controller (DSC) from the reputable Microchip Technology. This advanced microcontroller is part of the dsPIC33CH family, which is designed to deliver the computational power and speed of a DSP with the functionality and ease-of-use of an MCU. It is particularly suitable for applications that require sophisticated algorithms and control functions, such as automotive, industrial control, motor control, power conversion, and Internet of Things (IoT) devices.

Featuring a dual-core architecture, the dSPIC33CH128MP503-I/M5 enables independent code execution on the Master and Slave cores. The Master core can run the user interface, system monitoring, and communications stack, while the Slave core is dedicated to executing time-critical control code. This separation enhances system performance and efficiency, allowing for deterministic response times and parallel task execution.

Key features of the dSPIC33CH128MP503-I/M5 include:

• Memory: 128 KB of Flash memory and 8 KB of RAM, ensuring ample space for complex applications and algorithms.
• Speed: Operating at a frequency of up to 70 MIPS, this DSC ensures fast processing and response times.
• I/O Ports: Multiple input/output ports provide flexibility for interfacing with a variety of peripherals and devices.
• Robust Timers and PWM: Advanced timers, input capture, and output compare functions, along with high-resolution PWM modules, are ideal for precise motor control and other timing-critical applications.
• Analog Features: Integrated analog features such as ADCs, DACs, and comparators support complex analog signal processing.
• Communication Interfaces: Equipped with a variety of communication peripherals including UART, SPI, I2C, and CAN, allowing for versatile connectivity options.
• Temperature Range: The industrial temperature range of -40°C to +85°C ensures reliable operation in harsh environments.

The dSPIC33CH128MP503-I/M5 is available in a 64-pin QFN package, offering a compact footprint for space-constrained applications. With its advanced features and dual-core functionality, this DSC is an excellent choice for engineers looking to develop high-performance, multi-functional embedded systems.
