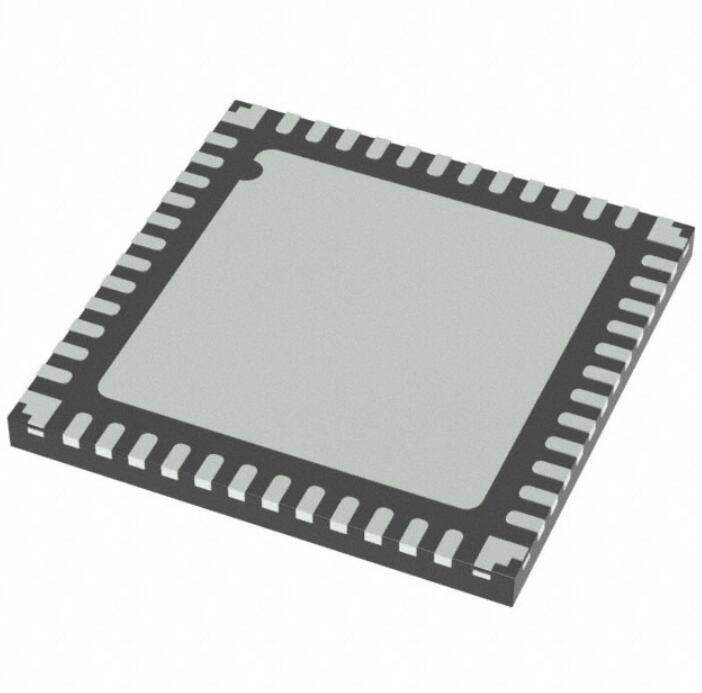

Microchip Technology's DSPIC33CH128MP505T-I/M4: A High-Performance Digital Signal Controller

Microchip Technology's DSPIC33CH128MP505T-I/M4 is a cutting-edge digital signal controller (DSC) that combines the processing power of a digital signal processor (DSP) with the versatility and ease-of-use of a microcontroller (MCU). This product is part of the dsPIC33CH family, which is designed to deliver exceptional performance and flexibility for a wide range of applications.

Key Features

• Core Performance: The DSC features a dual-core architecture with a high-performance 16-bit dsPIC33CH core that can run at up to 100 MHz. This core is tailored for DSP and control applications, offering a rich set of DSP instructions for efficient computation.
• Memory: It comes equipped with 128 KB of Flash memory and 28 KB of RAM, providing ample space for complex algorithms and applications.
• Robust Peripherals: A diverse set of peripherals complements the powerful core, including advanced analog features, multiple communication interfaces (I2C, SPI, UART), and motor control PWMs, which are ideal for precision control applications.
• Intelligent Analog: The device boasts integrated analog features such as ADCs, DACs, and op-amps, enabling sophisticated signal processing and analog interfacing.
• Functional Safety: The DSPIC33CH128MP505T-I/M4 is designed with functional safety in mind, making it suitable for applications requiring stringent safety standards.
• Operating Conditions: This DSC operates within a temperature range of -40°C to +85°C and is available in a 64-pin TQFP package, ensuring reliable performance in various environments.

Application Areas

The DSPIC33CH128MP505T-I/M4 is highly versatile and can be used in a multitude of applications, including:

• Advanced motor control systems
• Power supply and conversion
• Industrial automation and process control
• Automotive systems and safety
• Audio and speech processing
• Internet of Things (IoT) devices

Development Support

Microchip Technology provides comprehensive development support for the DSPIC33CH128MP505T-I/M4 with software libraries, development boards, and a suite of tools in MPLAB X Integrated Development Environment (IDE). This ecosystem simplifies the design process and accelerates time to market for engineers working with this advanced digital signal controller.

In summary, the DSPIC33CH128MP505T-I/M4 from Microchip Technology is a powerful and flexible solution for developers seeking to integrate DSP capabilities with the ease of MCU programming, all within a single device.
