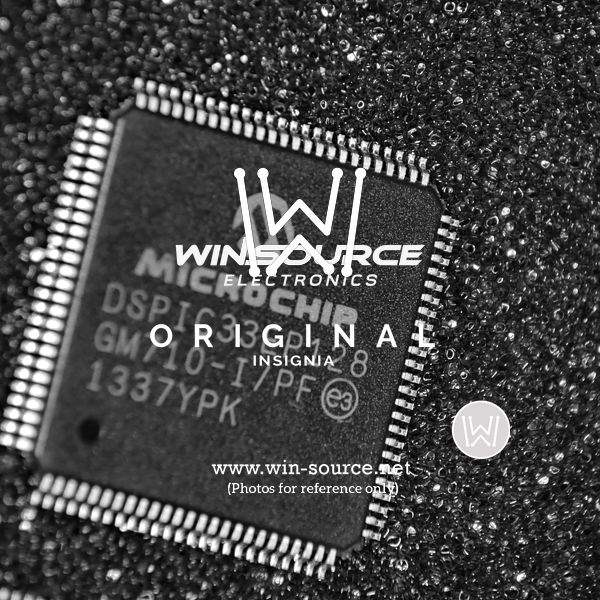

dSPIC33EP128GM710-I/PF Digital Signal Controller

The dSPIC33EP128GM710-I/PF is a high-performance 16-bit Digital Signal Controller (DSC) designed by Microchip Technology, offering an optimal solution for advanced control applications. This product is part of Microchip's dsPIC33E family, which is known for its enhanced features, including increased speed, memory, and a variety of peripherals tailored to handle complex algorithms and functions.

At the heart of the dSPIC33EP128GM710-I/PF is a 70 MIPS dsPIC33E core with DSP and enhanced on-chip features. It boasts 128 KB of flash memory and 16 KB of SRAM, providing ample space for sophisticated applications and algorithms. The device operates at a voltage range of 3.0V to 3.6V, ensuring compatibility with a wide array of power supplies and making it suitable for power-sensitive designs.

This microcontroller is equipped with dual partition flash with live update capability, which allows for high-reliability applications that require seamless firmware updates with zero downtime. The dSPIC33EP128GM710-I/PF also features advanced analog peripherals, including high-resolution ADCs, DACs, and multiple operational amplifiers, making it ideal for precise control and sensing applications.

For communication needs, the device supports a variety of serial interfaces, including UART, I2C, SPI, and CAN, providing flexibility to interface with other components or networks. Additionally, it offers a USB 2.0 OTG interface for connectivity with USB devices and hosts.

The dSPIC33EP128GM710-I/PF is designed with robustness in mind, featuring an extended temperature range and various built-in hardware safety features such as watchdog timers, fail-safe clock monitoring, and brown-out reset, ensuring reliable operation even in harsh environments.

With its flexible input/output options, the dSPIC33EP128GM710-I/PF can handle a multitude of digital and analog signals, making it an excellent choice for industrial control, motor control, power conversion, and many other embedded control applications. The package form of the dSPIC33EP128GM710-I/PF is a 100-pin TQFP, which provides a compact footprint while still offering ample pin access for complex designs.

Overall, the dSPIC33EP128GM710-I/PF from Microchip Technology is a powerful and versatile DSC that delivers the performance and features required for demanding control applications.
