Microchip Technology DSPIC33FJ256MC710A-E/PT Product Overview

The DSPIC33FJ256MC710A-E/PT is a high-performance, 16-bit Digital Signal Controller (DSC) from Microchip Technology, integrated with an array of features that make it an ideal choice for applications requiring a perfect blend of microcontroller (MCU) and digital signal processing (DSP) capabilities. This DSC is designed to cater to the demanding needs of advanced motor control, automotive, industrial control, and various other applications where efficient real-time control and processing are paramount.

Key Features

• Core: The DSPIC33FJ256MC710A-E/PT is built around a powerful 16-bit dsPIC33F core, which can run at a maximum speed of 40 MIPS (Million Instructions Per Second), ensuring swift execution of complex algorithms and control tasks.
• Memory: It comes equipped with 256 KB of Flash memory for program storage and 30 KB of RAM for data, which is ample for hosting a variety of applications and facilitating efficient data manipulation.
• Digital I/O: The device features up to 85 General-Purpose I/O (GPIO) pins, providing extensive interface options with external circuits and peripherals.
• Advanced Peripherals: Onboard are various peripherals including UART, SPI, I2C modules for serial communication, as well as PWM outputs, and Analog-to-Digital Converters (ADCs) for interfacing with analog sensors and implementing sophisticated control schemes.
• Robust Timer/Counters: Multiple 16-bit and 32-bit timers/counters enable precise event timing and measurement, which is critical in control applications.
• Motor Control PWMs: Specialized PWM outputs with features like fault inputs and dead-time control support advanced motor control applications.
• Operating Voltage: The DSPIC33FJ256MC710A-E/PT operates within a range of 3.0V to 3.6V, making it suitable for a wide array of power environments.
• Temperature Range: This DSC is designed to perform reliably within the industrial temperature range of -40°C to +85°C.

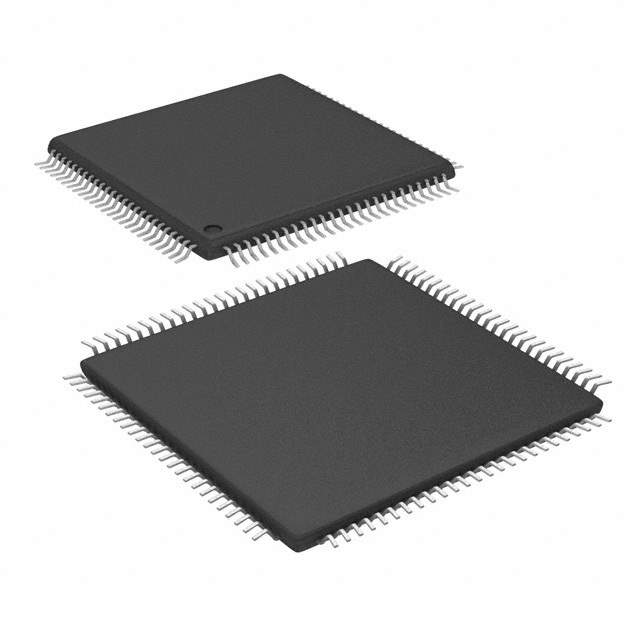

• Packaging: It is available in a 100-pin TQFP package, which is ideal for space-constrained applications.

Applications

The DSPIC33FJ256MC710A-E/PT is versatile enough to fit into a multitude of application areas. Its high-speed processing and rich set of peripherals make it particularly well-suited for:

• Advanced Motor Control Systems
• Automotive Applications
• Power Supply Control
• Industrial Automation and Process Control
• Robotics
• Audio Processing
• Communication Systems

With its combination of microcontroller versatility and DSP performance, the DSPIC33FJ256MC710A-E/PT from Microchip Technology is a powerful solution for developers looking to create sophisticated and responsive control systems.
