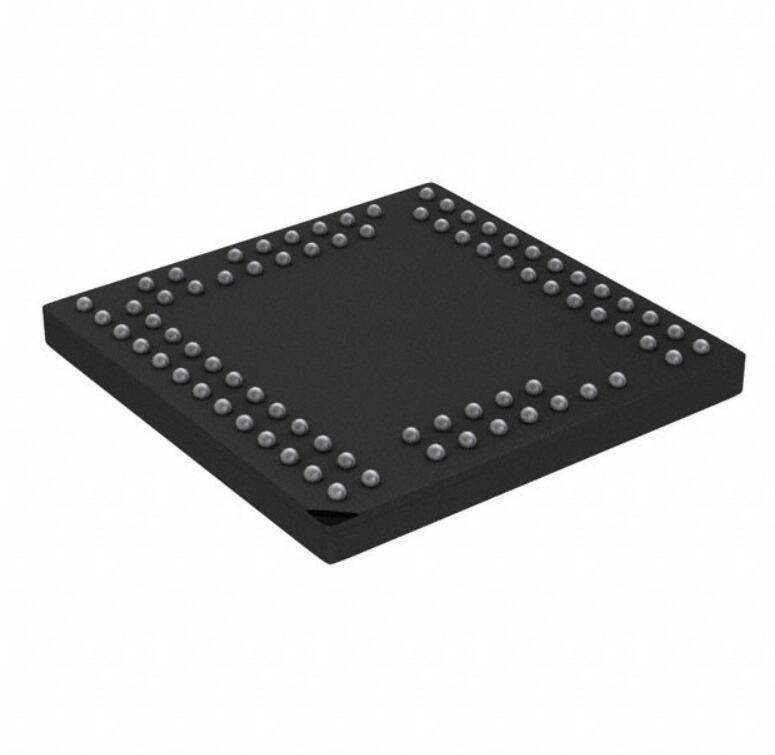

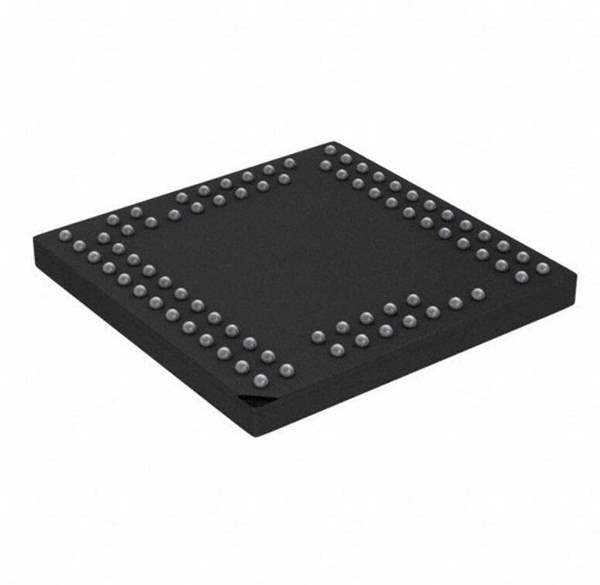

Introducing the HV2802GA-G from Microchip Technology

Microchip Technology's HV2802GA-G is a high-performance, low-voltage serial to high-voltage parallel converter with push-pull outputs, designed for use in applications that require high-voltage switching controlled by a low-voltage serial interface. This sophisticated component is a part of Microchip's family of High-Voltage Analog Switches, which are renowned for their reliability and versatility.

Key Features

• Versatile Voltage Range: The HV2802GA-G operates with a wide analog signal range, making it suitable for various applications that require high-voltage handling capabilities.
• Serial Interface: The device features a 3.3V to 5V CMOS logic interface, facilitating easy integration with a broad range of microcontrollers and digital systems.
• High-Voltage Outputs: With 32-channel high-voltage push-pull outputs, the HV2802GA-G can directly drive high-voltage loads, providing robust performance for demanding applications.
• Low On-Resistance: The low on-resistance of the switch channels ensures efficient signal transmission with minimal signal loss and heat generation.
• Daisy-Chain Capability: Multiple HV2802GA-G devices can be daisy-chained, allowing for the expansion of the output channel count while still using a minimal number of control lines.

Applications

The HV2802GA-G is ideal for a wide range of high-voltage switching applications, including:

• Medical Ultrasound Imaging
• Non-Destructive Testing (NDT) Equipment
• Printed Circuit Board (PCB) Testing and Inspection
• Industrial Process Controls
• Automated Test Equipment (ATE)

With its compact package and exceptional performance, the HV2802GA-G is an excellent choice for designers looking to enhance their systems with high-voltage switching capabilities. Microchip Technology's commitment to quality ensures that the HV2802GA-G will meet the stringent requirements of your high-voltage applications, providing reliable and efficient operation.

For detailed technical specifications, application notes, and support resources, visit Microchip Technology's official website or contact their customer support team.
