Product Overview: JANS2N2369AUB/TR from Microchip Technology

The JANS2N2369AUB/TR is a high-reliability, small signal NPN transistor designed and manufactured by Microchip Technology. This component is specifically engineered to meet the stringent requirements of aerospace and defense applications, offering exceptional performance and durability in extreme environments.

Key Features

• High Reliability: The JANS2N2369AUB/TR is built to meet the rigorous standards of the Joint Army/Navy (JAN) specification, ensuring top-tier quality and consistency for mission-critical applications.
• Temperature Resistant: With an operating temperature range that spans from -55°C to +200°C, this transistor is capable of withstanding harsh thermal conditions without compromising its functionality.
• Hermetically Sealed: The device is enclosed in a hermetically sealed package, providing excellent protection against moisture and contaminants that could otherwise impair its performance.

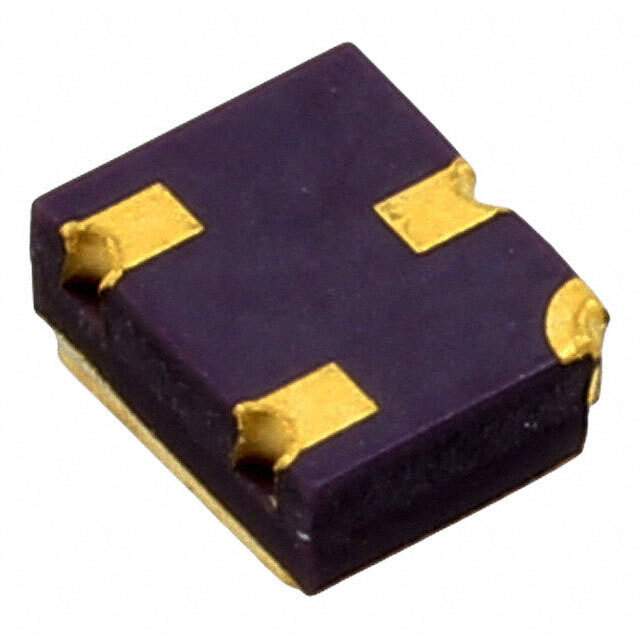

• Surface-Mount Technology: The UB package is designed for surface-mounting, which facilitates more compact circuit designs and supports high-density board layouts.

Electrical Characteristics

• Voltage & Current: It supports a collector-emitter voltage (VCEO) of 15V and a continuous collector current (IC) of up to 50mA, making it suitable for a wide range of low-power applications.
• Switching Performance: The JANS2N2369AUB/TR exhibits fast switching speeds, which is critical for high-speed signal processing and switching applications.
• Gain Bandwidth Product: This transistor offers a gain bandwidth product (fT) of 500MHz, ensuring ample bandwidth for high-frequency operations.

Applications

• Aerospace: Ideal for satellite systems, space exploration vehicles, and other aerospace electronics that require reliable performance in outer space conditions.
• Defense: Suitable for use in military communications equipment, avionics, and other defense-related electronics that demand high reliability and robustness.
• High-Reliability Systems: Can be used in medical devices, transportation systems, and critical infrastructure that require long-term stability and consistent operation.

The JANS2N2369AUB/TR from Microchip Technology is a testament to the company's commitment to delivering high-quality, reliable components for the most demanding applications. Whether for use in the depths of space or in the defense of nations, this transistor is designed to perform with unwavering precision and stability.
