Products specifications Report Issue?

Category Integrated Circuits (ICs)>Interface - Controllers
Mfr Microchip Technology
Package Tray
Protocol Ethernet
Function Switch
Interface I2C
Standards 10/100 Base-T/TX PHY
Voltage - Supply 1.8V ~ 3.3V
Temperature Range - Operating -40°C ~ 85°C

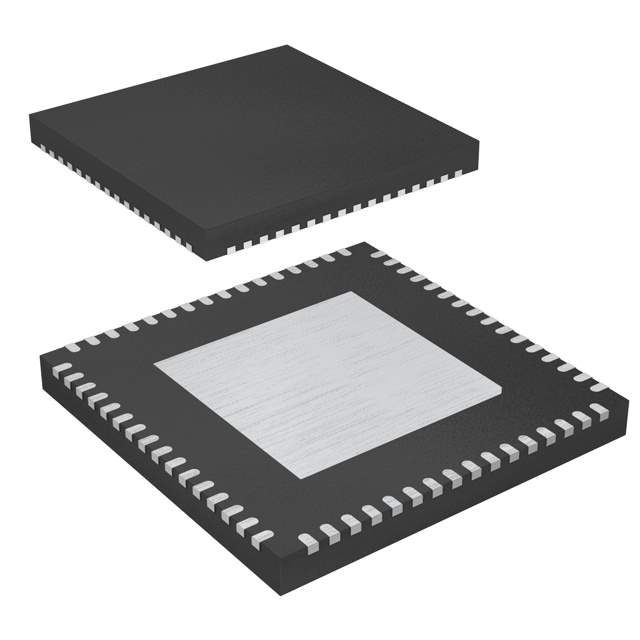

Package / Case 64-VFQFN Exposed Pad
Supplier Device Package 64-QFN (9x9)
Base Product Number LAN9353
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 260
Win Source Part Number 1178150-LAN9353I/ML
Ultra Librarian 3D Model Ultra Librarian LAN9353I/ML CAD Model

Description

Microchip Technology's LAN9353I/ML - Triple-Speed Ethernet Switch

The LAN9353I/ML from Microchip Technology is a highly integrated, high-performance triple-speed Ethernet switch that offers an optimal solution for embedded and industrial applications. This compact, low-power device is designed to support 10/100/1000 Mbps Ethernet connectivity, catering to systems that demand high-speed data transfer capabilities and reliable network connections.

Key Features:

  • Triple-Speed Capability: The LAN9353I/ML supports 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet protocols, enabling versatile connectivity options for a range of network speeds.
  • Energy Efficient: With Energy Efficient Ethernet (EEE) support, the switch can reduce power consumption during periods of low data activity, making it an eco-friendly choice for energy-conscious designs.
  • Advanced Switching: The device includes advanced features such as Quality of Service (QoS), VLAN support, and port mirroring, providing enhanced network control and traffic management.
  • Industrial Temperature Range: The LAN9353I/ML is designed to operate reliably in extreme temperatures ranging from -40°C to +85°C, making it suitable for industrial environments.
  • Small Form Factor: Housed in a compact 64-pin QFN package, the switch is ideal for space-constrained applications.

Applications:

The LAN9353I/ML is versatile in its applications, serving an array of industries and systems, including:

  • Embedded Systems
  • Industrial Automation
  • Automotive Infotainment
  • Home Networking Devices
  • Security and Surveillance Systems

Technical Specifications:

At the core of the LAN9353I/ML are robust technical specifications that ensure seamless integration and operation within various network configurations:

  • Package: 64-pin QFN
  • Temperature Range: -40°C to +85°C
  • Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az

Whether you're designing an advanced industrial control system or a sophisticated home networking solution, the LAN9353I/ML from Microchip Technology offers the reliability, performance, and flexibility needed to meet the demands of modern networked devices.
