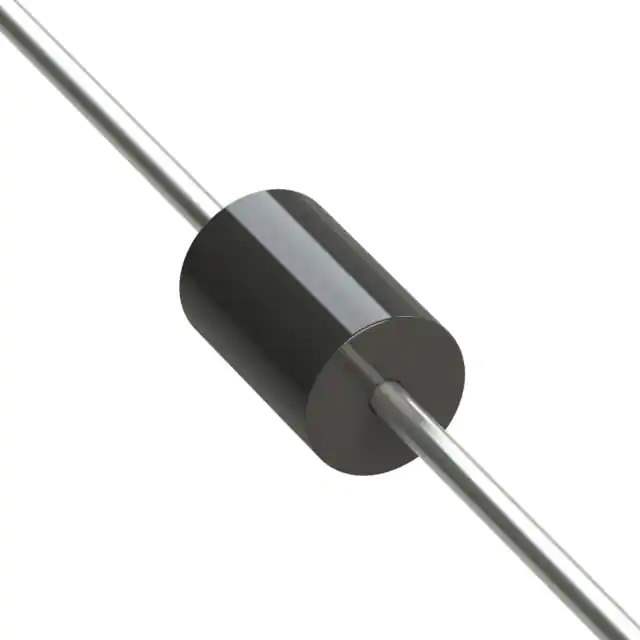

Product Overview: M15KP85CAE3/TR by Microchip Technology

The M15KP85CAE3/TR is a robust transient voltage suppression (TVS) diode designed by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This product is engineered to protect sensitive electronic equipment from voltage spikes and transients induced by lightning and other transient voltage events.

Key Features

• High Surge Capability: The M15KP85CAE3/TR is capable of handling surge currents, making it an excellent choice for safeguarding high-exposure and high-power systems.
• Reverse Standoff Voltage: It has a reverse standoff voltage of 85V, which is the maximum voltage that the device can withstand without conducting in reverse.
• Peak Pulse Power Dissipation: The device offers a peak pulse power dissipation of 15000W at 10/1000μs waveform, ensuring reliable protection against high energy transients.
• Clamping Voltage: With a low clamping voltage, this TVS diode ensures that any transient voltage spike is clamped to a safe level, protecting downstream circuitry from high voltage stress.
• Operating Temperature Range: The device can operate over a wide temperature range, making it suitable for various industrial and commercial applications.
• Package Type: Supplied in a molded package, the M15KP85CAE3/TR offers a compact and durable solution for PCB mounting.

Applications

The M15KP85CAE3/TR is ideal for protecting a variety of electronic systems, including:

• Power supply circuits
• Telecommunication systems
• Industrial control systems
• Automotive electronics
• Aerospace and avionics equipment

Reliability and Quality

Microchip Technology is known for its commitment to quality, and the M15KP85CAE3/TR is no exception. This product is designed to meet rigorous industry standards, ensuring reliable performance even under the toughest conditions. Furthermore, the device is RoHS compliant, adhering to environmental regulations and minimizing the use of hazardous substances.

Overall, the M15KP85CAE3/TR from Microchip Technology is a powerful solution for protecting electronic systems from voltage transients. Its combination of high surge capability, robust power dissipation, and reliable performance makes it a top choice for engineers and designers looking to enhance the durability and longevity of their electronic products.
