Microchip Technology M2S090TS-1FG676I Product Overview

The M2S090TS-1FG676I is a high-performance, field-programmable gate array (FPGA) from Microchip Technology, designed to meet the needs of various complex digital systems. This device is part of the SmartFusion2 SoC FPGA family, which combines a rich feature set with a high level of integration to provide a versatile and efficient solution for system designers.

At the heart of the M2S090TS-1FG676I is a second-generation flash-based FPGA fabric, which ensures low power consumption and high reliability. The FPGA is complemented by an ARM Cortex-M3 processor, which provides a 32-bit processing capability for embedded applications. This combination allows designers to create systems with both customizable logic and a powerful processor in a single chip, simplifying the design process and reducing time to market.

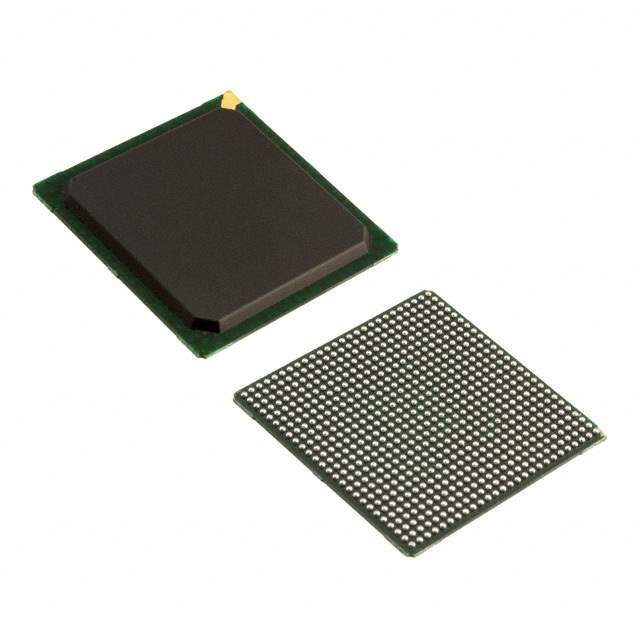

The device comes in a 676-pin fine pitch ball grid array (FBGA) package, which offers a compact footprint for space-constrained applications. The 'TS' in the product name indicates the device's temperature range, which is specified for industrial temperatures, making it suitable for operation in harsh environments.

Key features of the M2S090TS-1FG676I include:

• High-density, low-power flash-based FPGA fabric
• ARM Cortex-M3 processor with up to 166 MHz performance
• Advanced security features, including secure boot, 256-bit AES encryption, and a random number generator
• High-speed serial interfaces, including PCIe, XAUI, and native SERDES blocks
• Comprehensive DSP capabilities for signal processing applications
• Up to 90K logic elements, providing ample space for complex designs
• Microcontroller subsystem (MSS) with peripherals such as UART, SPI, I2C, and CAN for easy integration of common interfaces
• 1.2V core voltage with multiple I/O standards support

The M2S090TS-1FG676I is ideal for a wide range of applications, including industrial control, communication systems, automotive, and defense. Its robust feature set and high level of integration make it a go-to solution for designers who require a reliable, high-performance FPGA with an embedded processor.

With Microchip Technology's support and resources, including development tools and reference designs, users can rapidly develop and deploy systems using the M2S090TS-1FG676I, ensuring a successful product that meets both performance and cost targets.
