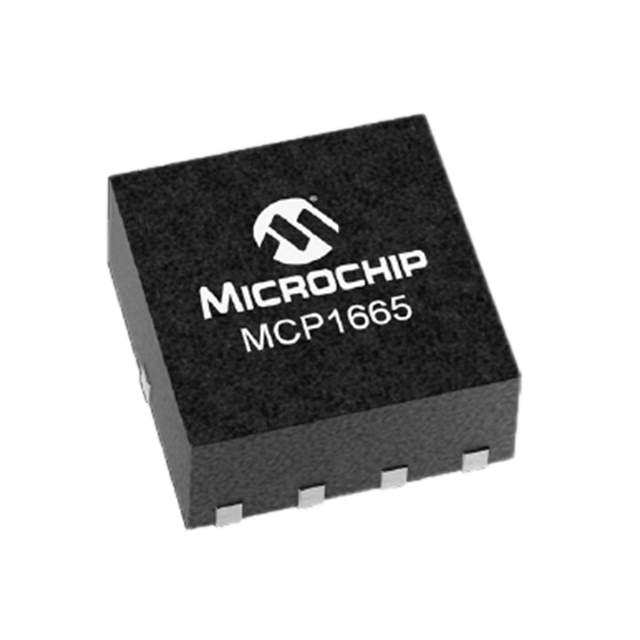

Microchip Technology's MCP1665T-E/MRA: High-Voltage Boost Converter

The MCP1665T-E/MRA is a high-performance, compact, integrated circuit from Microchip Technology, designed to drive applications requiring high voltage outputs from low voltage sources. This versatile boost converter is an ideal solution for power management in a wide range of electronic devices, including portable electronics, battery-powered applications, and LED lighting systems.

At the heart of the MCP1665T-E/MRA is an efficient, pulse-width modulation (PWM) controller capable of handling input voltages ranging from 2.4V to 5.5V, which makes it suitable for products powered by lithium-ion batteries, multiple alkaline/NiMH cells, or regulated 5V power supplies. The device is engineered to boost these input voltages to a higher output, with a maximum voltage up to 32V.

The MCP1665T-E/MRA features a high switching frequency of up to 2MHz, which allows for the use of smaller, more cost-effective inductors and capacitors, resulting in a compact power supply design. This high frequency also enables fast transient response, making it well-suited for applications that demand quick changes in power levels.

With its integrated safety features, the MCP1665T-E/MRA ensures reliable operation and protection for the end application. This includes overtemperature protection, under-voltage lockout, overcurrent limiting, and short-circuit protection. These safeguards help to prevent damage to the IC and the powered device in the event of abnormal operating conditions.

For design flexibility, this boost converter offers an adjustable output voltage, set by two external resistors. This allows designers to tailor the output voltage to meet the specific needs of their application. Additionally, the MCP1665T-E/MRA comes in a compact, 10-lead MSOP package, which is highly beneficial for space-constrained designs.

Overall, the Microchip Technology MCP1665T-E/MRA is a robust high-voltage boost converter that combines performance, versatility, and reliability for a wide array of high-voltage applications. Its small footprint and comprehensive feature set make it an excellent choice for designers looking to optimize their power management solutions.
